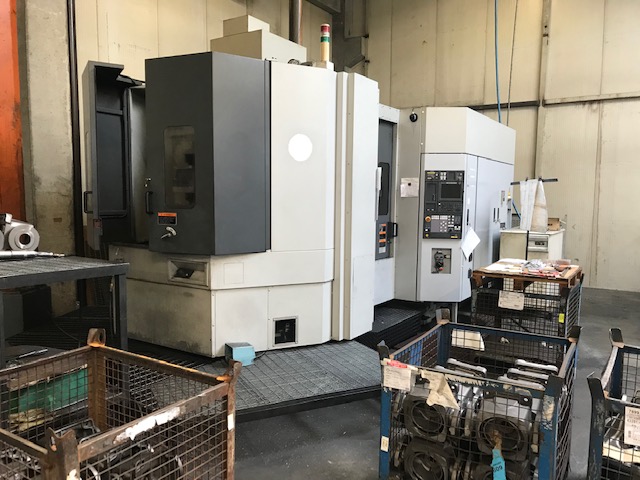

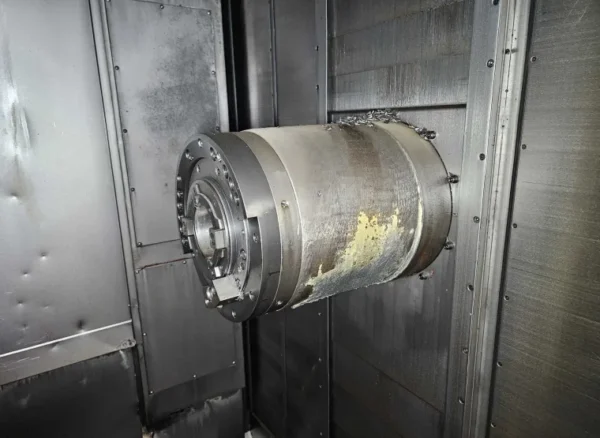

| MANUFACTURER | MORI SEIKI |
| MODEL | SH-633 |
| CATEGORY | Horizontal machining center |
| YEAR | 2003 |
| CNC CONTROL | MORI SEIKI MSG-502 III |
| MACHINE WEIGHT (kg) | 18.000 |
| DIMENSIONS (width. x lenght. x height.) (mm) | 2.800 x 6.300 x 3.300 |
| NUMBER OF AXIS | 3 |
| CE DECLARATION | YES |
| SPINDLE | |

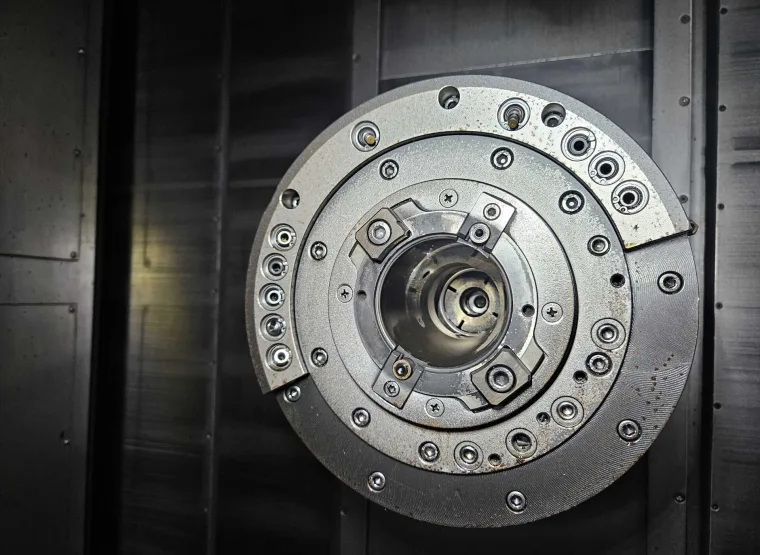

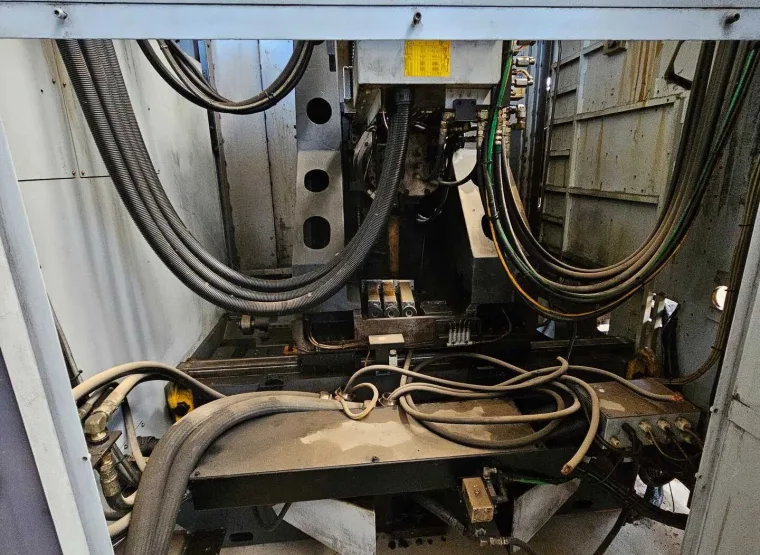

| Cone dimension | BT-50 |
| Max spindle speed (rpm) | 10.000 |
| Max spindle motor power (cont./30 minuti) (kW) | 25/30 |
| CAPACITIES | |
| X axis (mm) | 840 |
| Y axis (mm) | 760 |
| Z axis (mm) | 840 |
| Distance spindle center – pallet surface (mm) | 150 – 990 |
| Distance spindle nose – pallet center (mm) | 50 – 810 |
| Max piece size (diam. x height) (mm) | Ø 940 x 1.000 |
| TABLE | |
| Dimension (mm) | 630 x 630 |
| Number of station | 2 stations with 1 pallet each. |
| Load capacity (kg) | 1.200 |
| Rotation | Continuous |
| FEEDRATES | |
| Rapids X/Y/Z axis (mm/min) | 32.000 |
| Working feeds X/Y/Z axis (mm/min) | 1 – 16.000 |
| Motors power (kW) | X,Z: 5,0Â | Y: 7,3 |
| TOOL CHANGER | |
| Tool cone | BT-50 |
| Pull stud | Type Mori Seiki 90° |
| Tool storage capacity | 120 stations |
| Max tool diameter (with full adjacent stations) (mm) | Ø120 / Ø300 |
| Max tool lenght (mm) | 500 |
| Max tool weight (kg) | 30 |
| ACCESSORIES | |

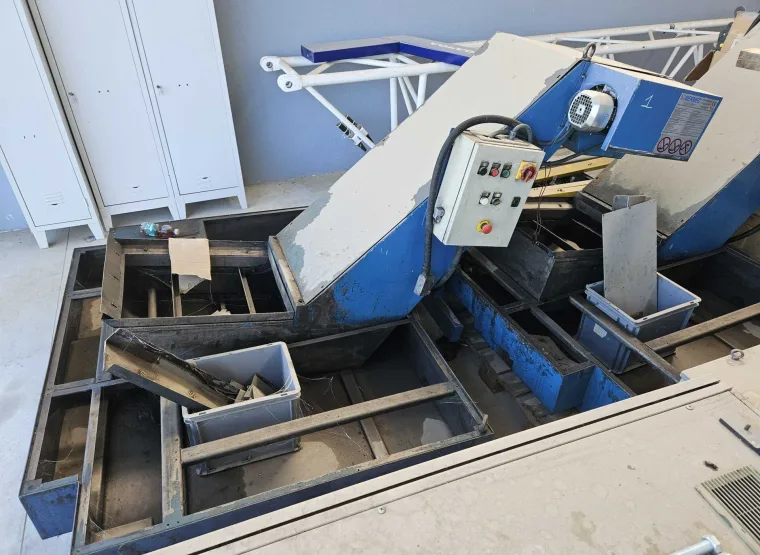

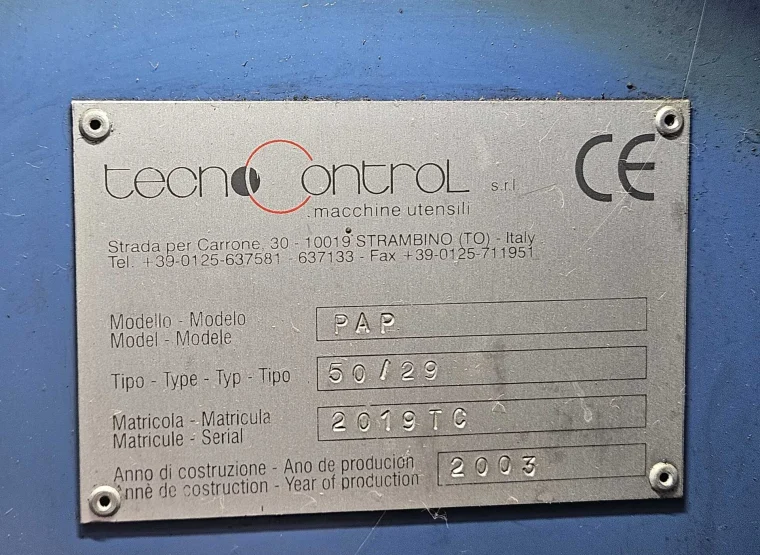

| Tank and chip conveyor | |

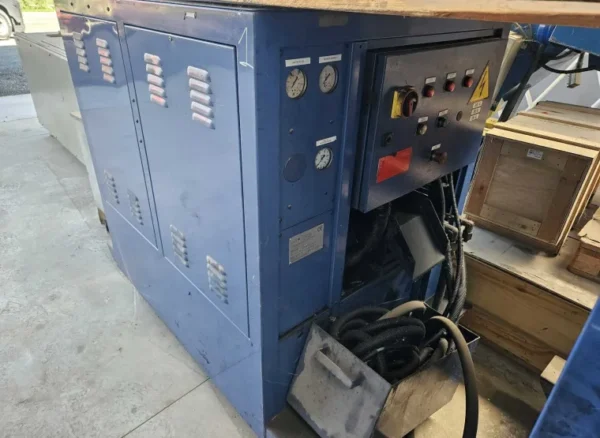

| High pressure pump (50 bar) with autoclaening filter | |
| Lubricant throughout the spindle line | |
| Coolant system for spindle line | |
| Presetting or Laser | |

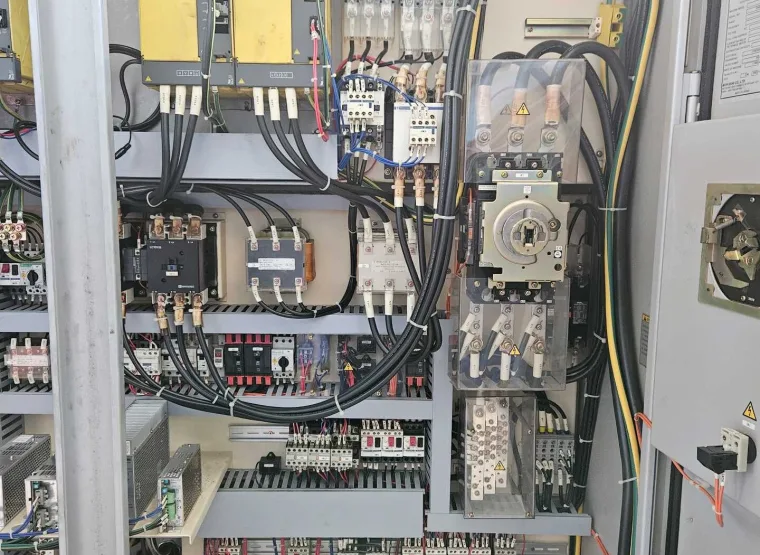

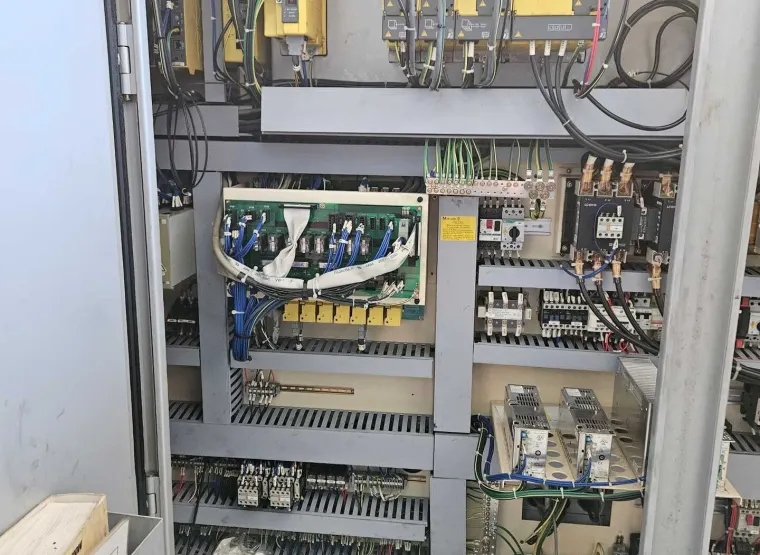

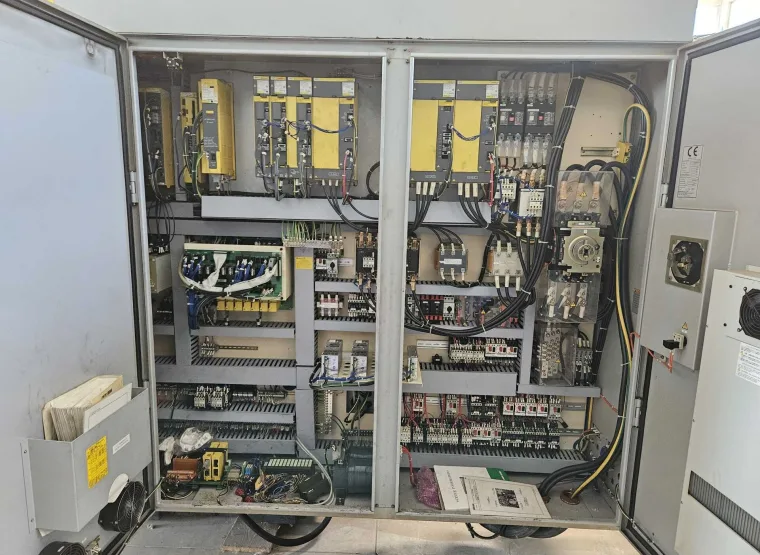

| Manuals, electric schematic | |
