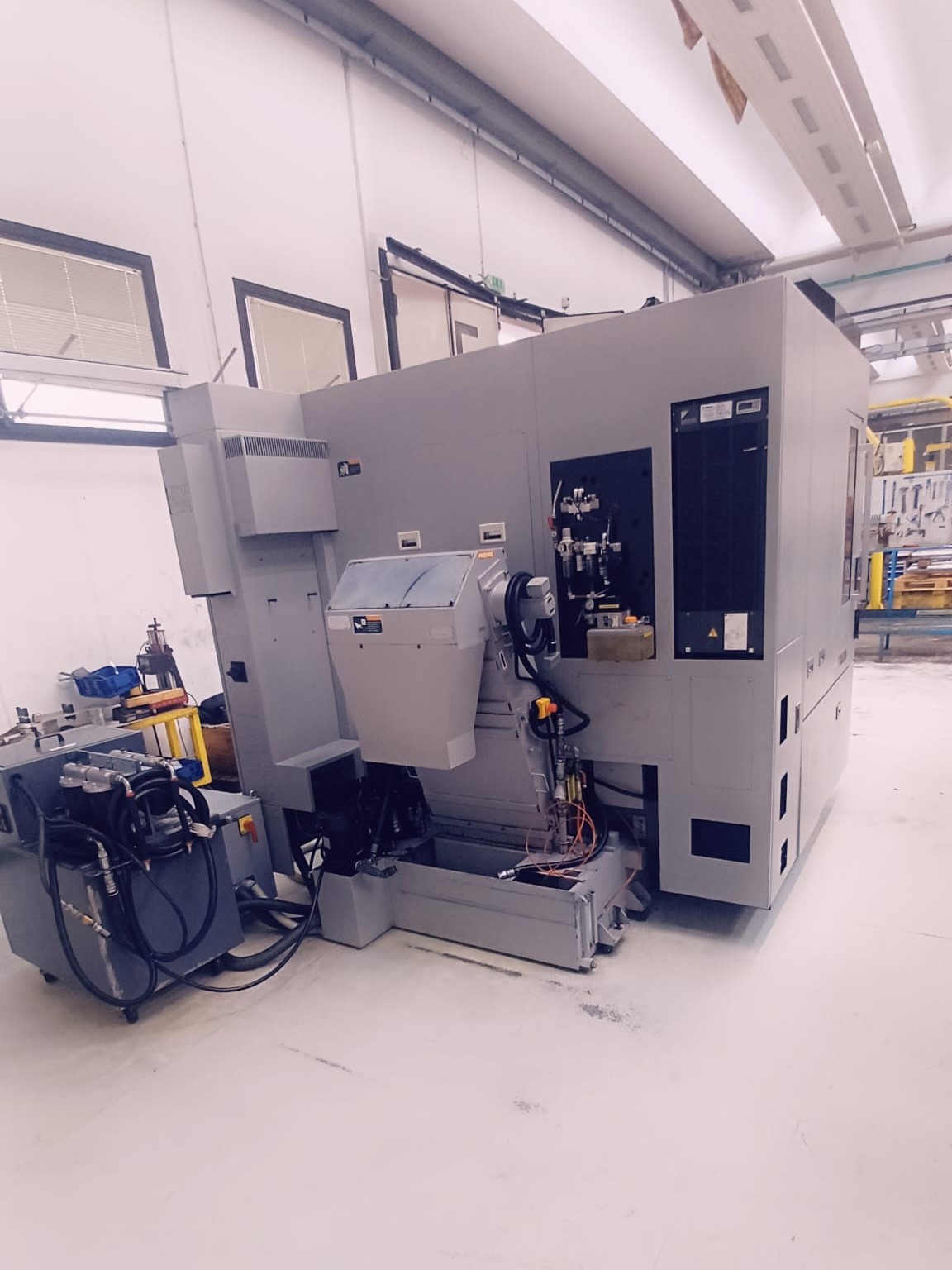

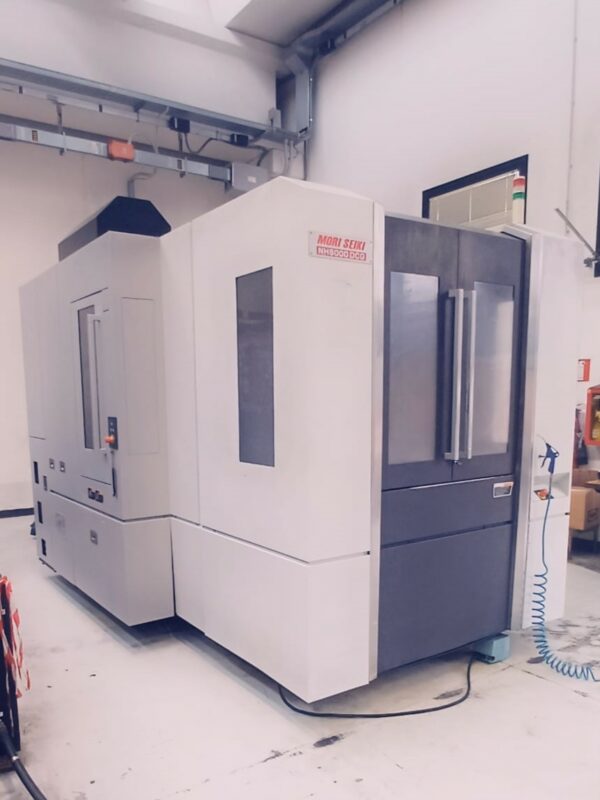

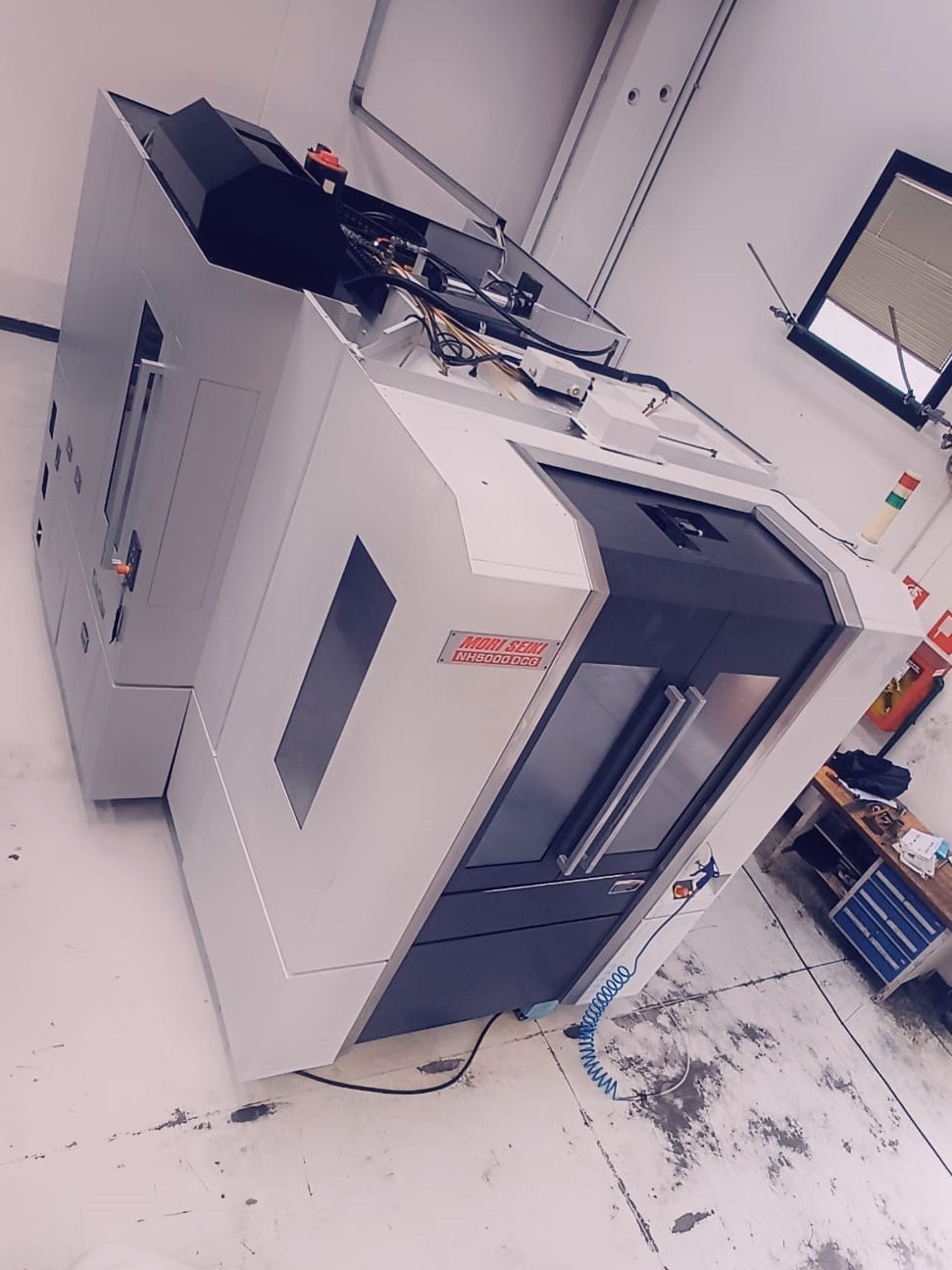

| MANUFACTURER | MORI SEIKI |
| MODEL | NH-5000/40 DCG |
| CATEGORY | Horizontal machining center |
| YEAR | March 2008 |

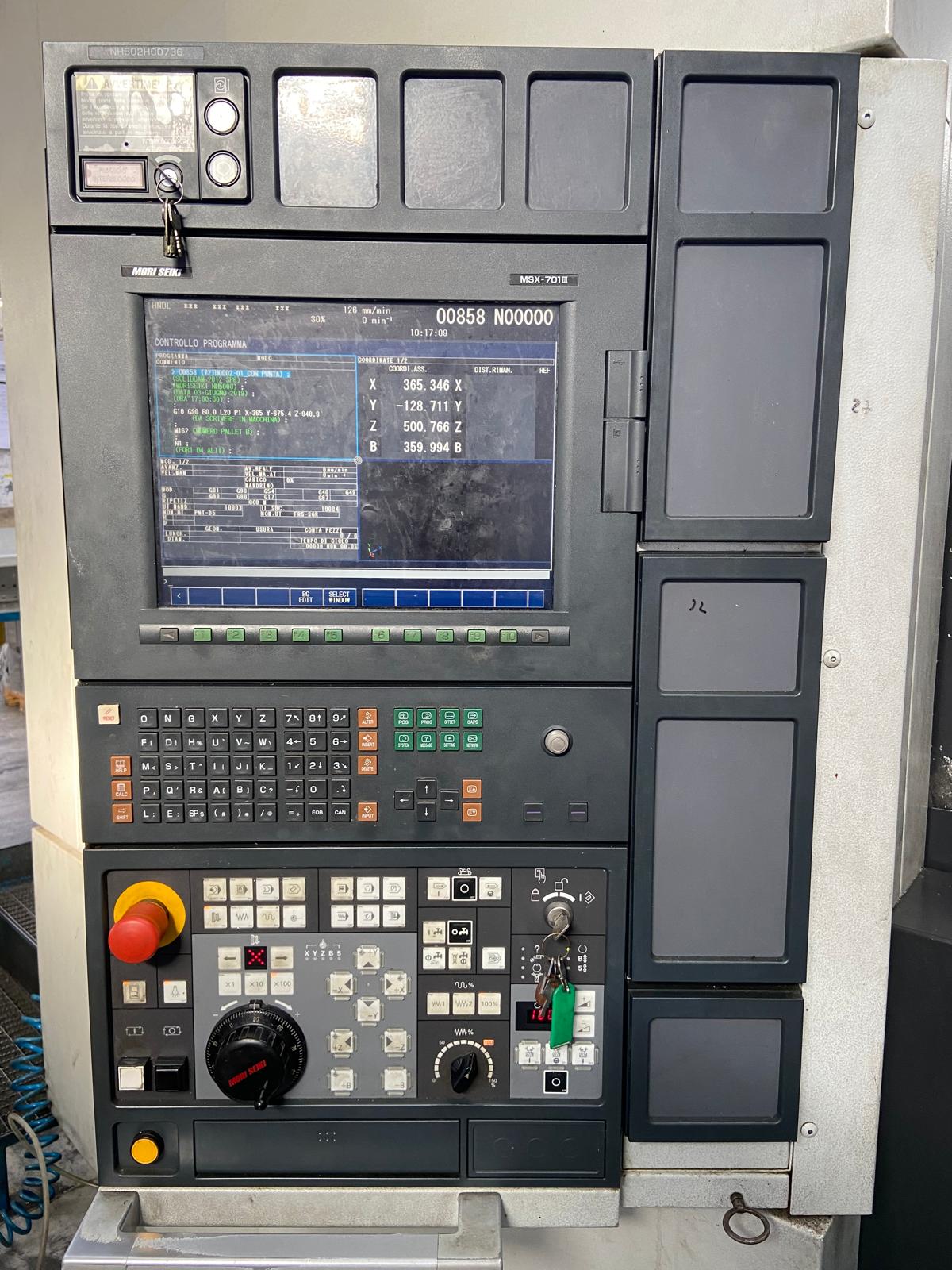

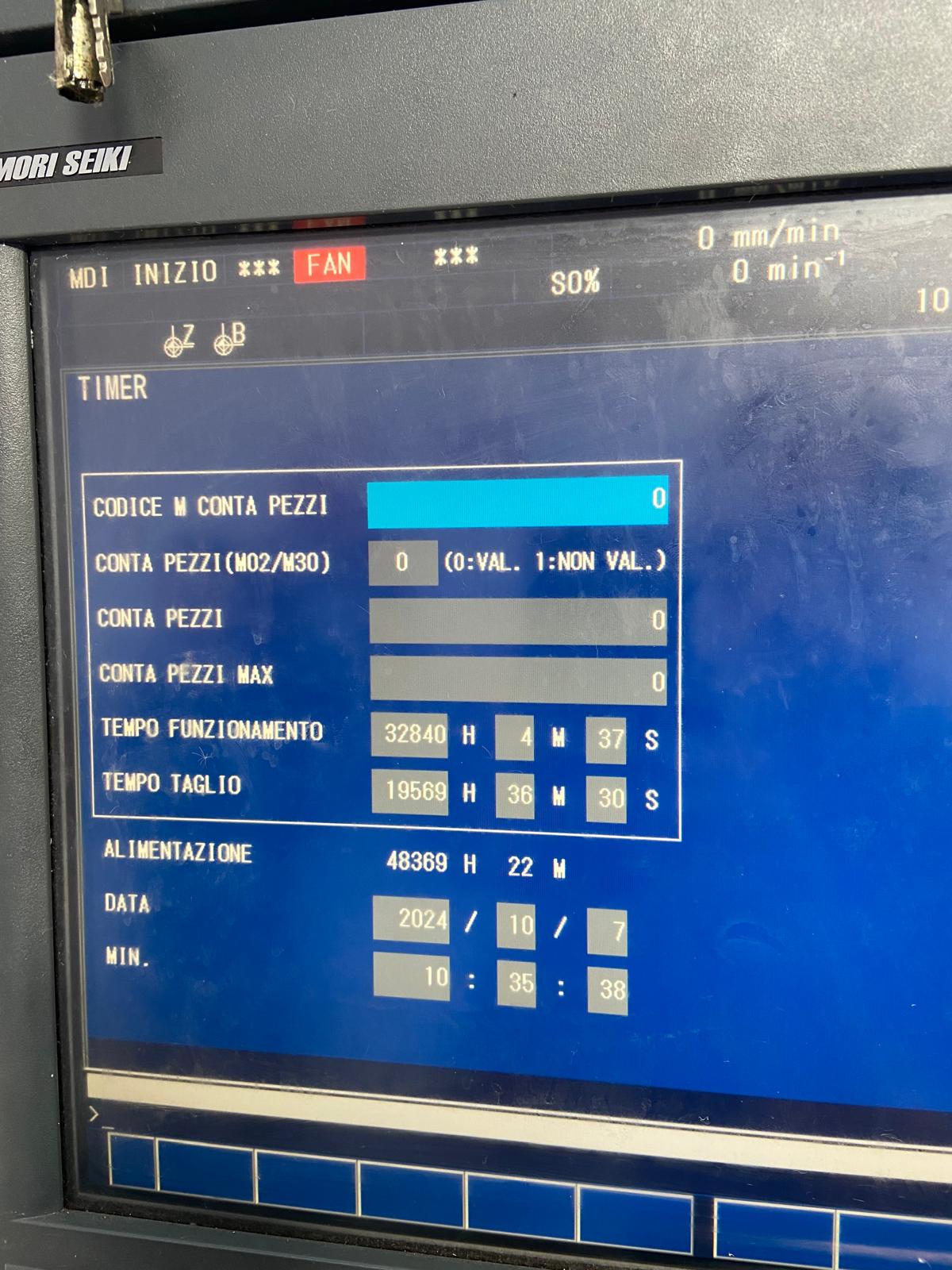

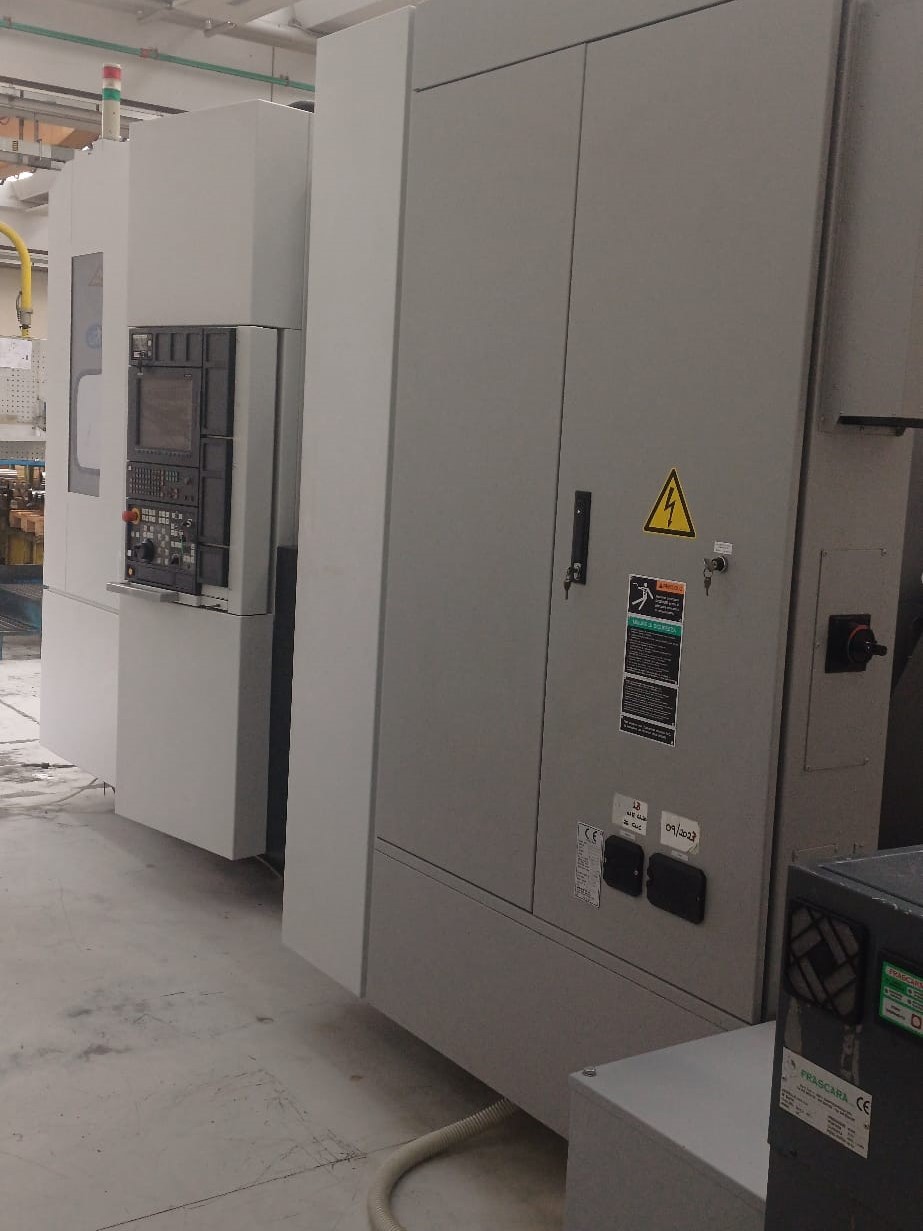

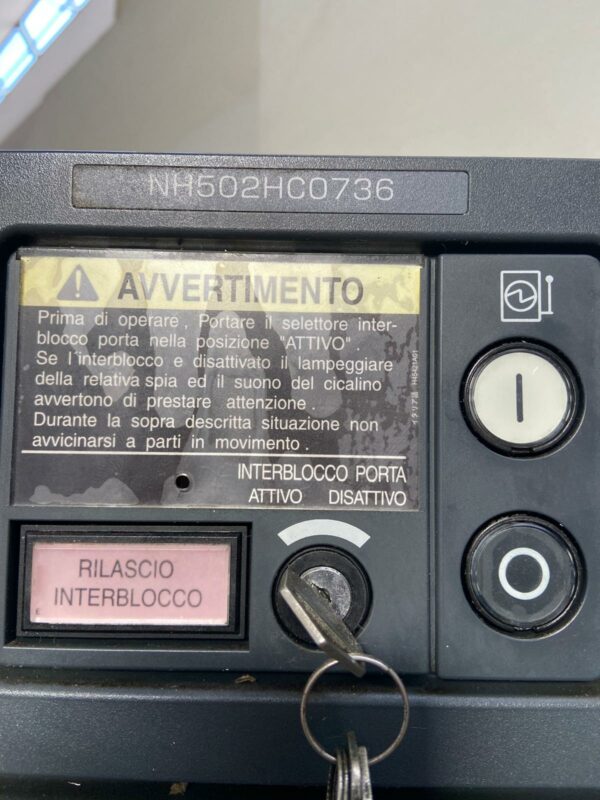

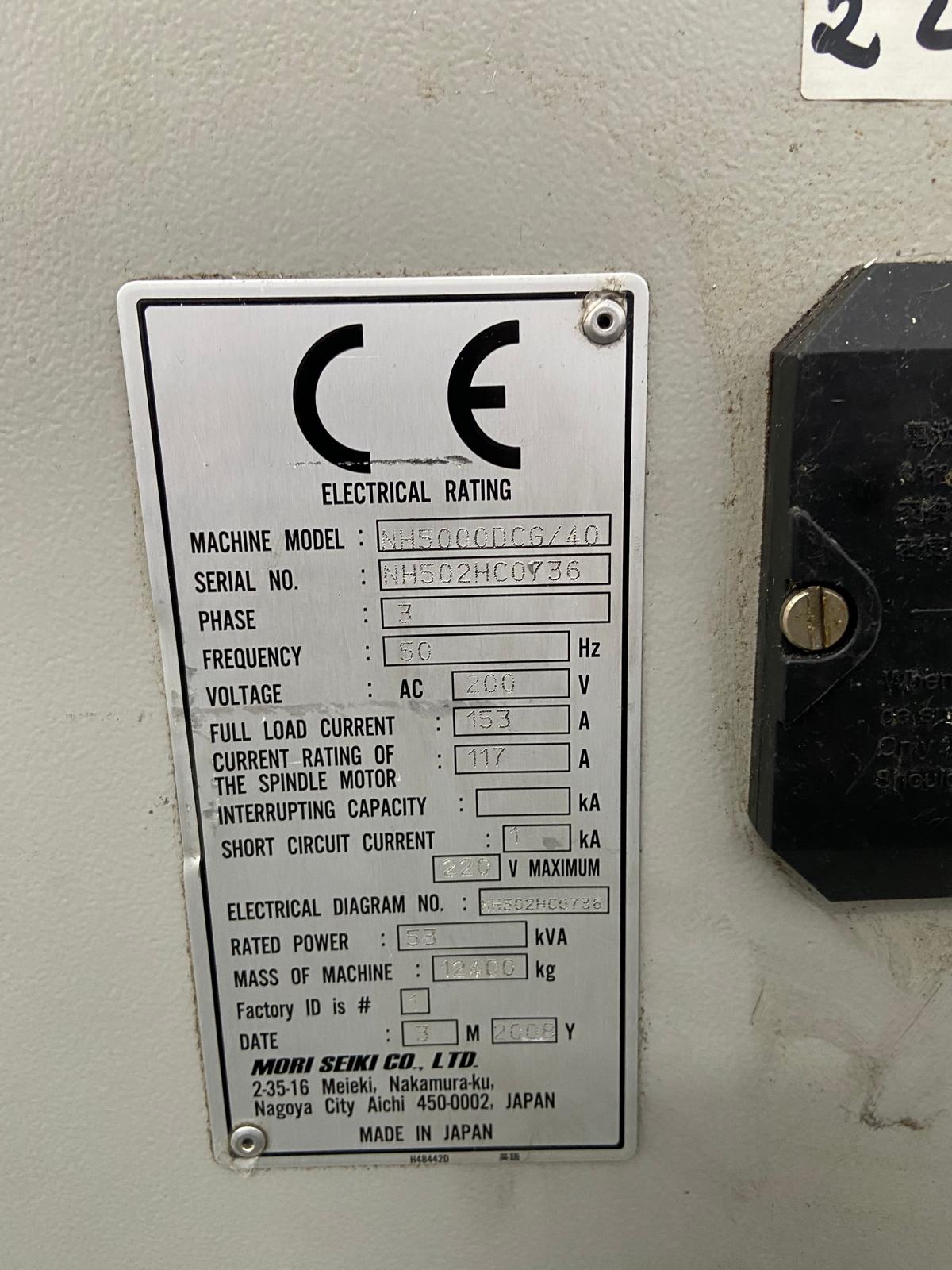

| CNC CONTROL | FANUC MSX 701/3 (MAPPS 3) |
| MACHINE WEIGHT (kg) | 12.400 |
| DIMENSIONS (length. x width. x height.) (mm) | 2.650 x 4.610 x 2.970 |
| NUMBER OF AXIS | 4 |
| CE DECLARATION | YES |
| SPINDLE | |
| Cone dimension | ISO-40 |
| Max spindle speed (rpm) | 14.000 |
| Max spindle motor power (cont./30 minutes) (kW) | 18,5/22 |
| CAPACITIES | |
| X axis (mm) | 730 |
| Y axis (mm) | 730 |
| Z axis (mm) | 850 |
| Distance spindle center – pallet surface (mm) | 100 – 830 |
| Distance spindle nose – pallet center (mm) | 100 – 950 |
| Max piece size (diam. x height) (mm) | Ø 800 x 1000 |

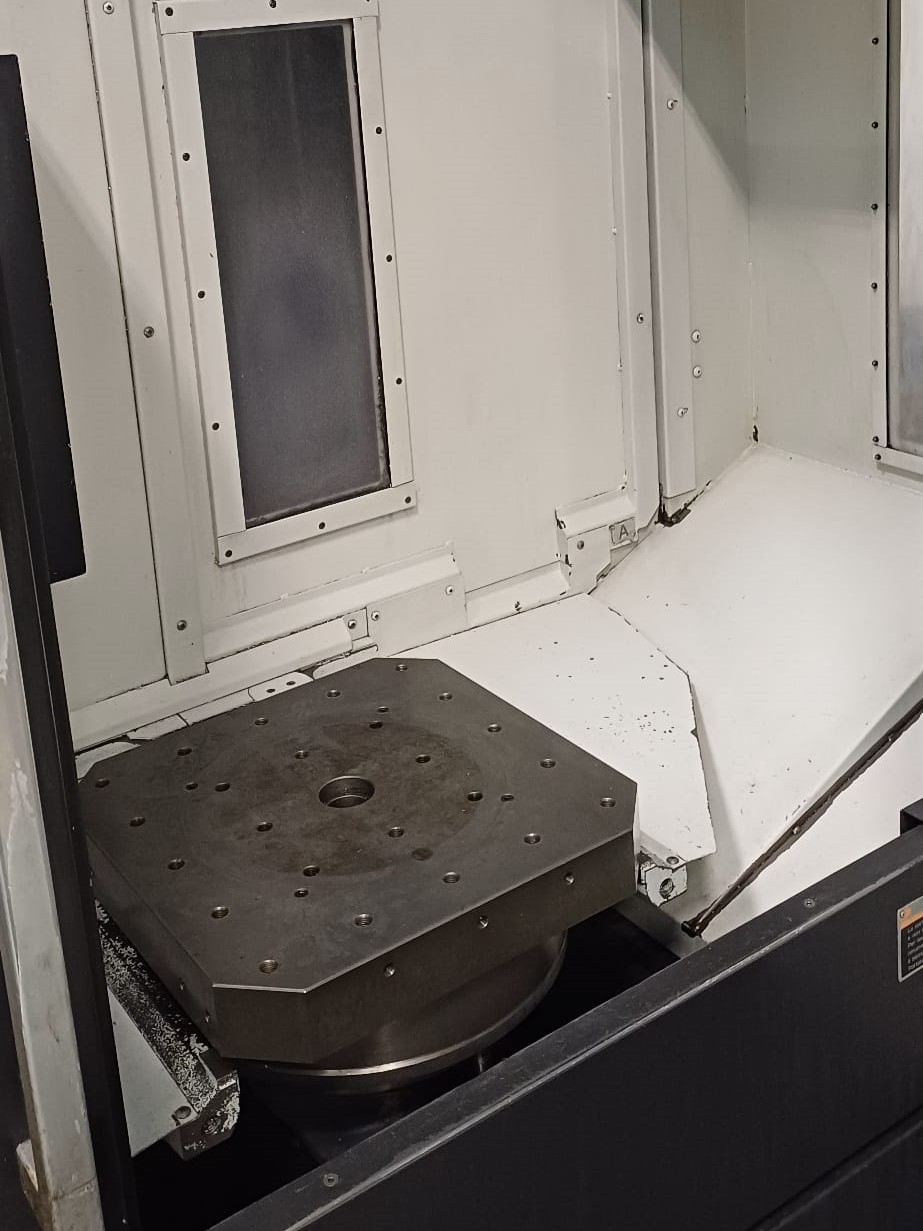

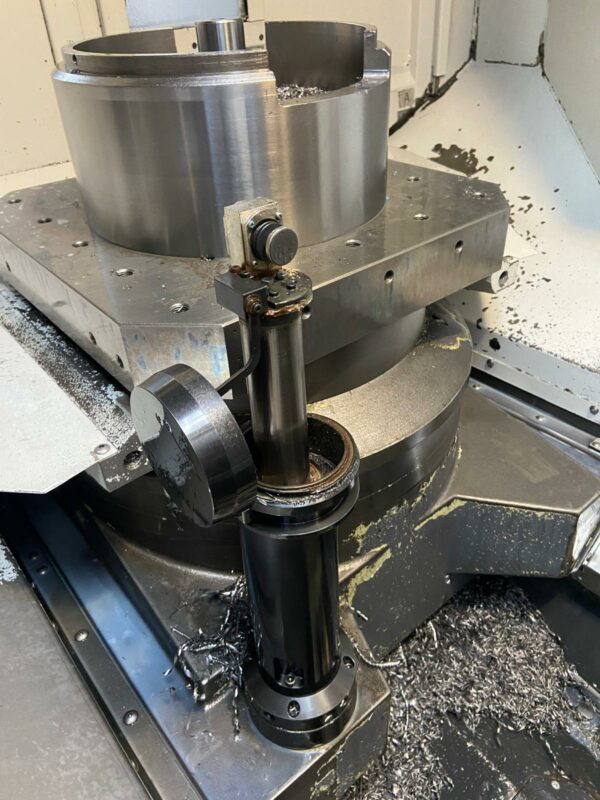

| TABLE | |
| Dimension (mm) | 500 x 500 |
| Number of station | 2 stations with 1 pallet each. |
| Load capacity (kg) | 500 |
| Rotation | in continuous (B axis, 0,001°) |
| FEEDRATES | |
| Rapids X/Y/Z axis (mm/min) | 50.000 |
| Working feeds X/Y/Z axis (mm/min) | 1 – 50.000 |
| TOOL CHANGER | |
| Tool cone | BT-40 |
| Pull stud | Type Mori Seiki 90° |

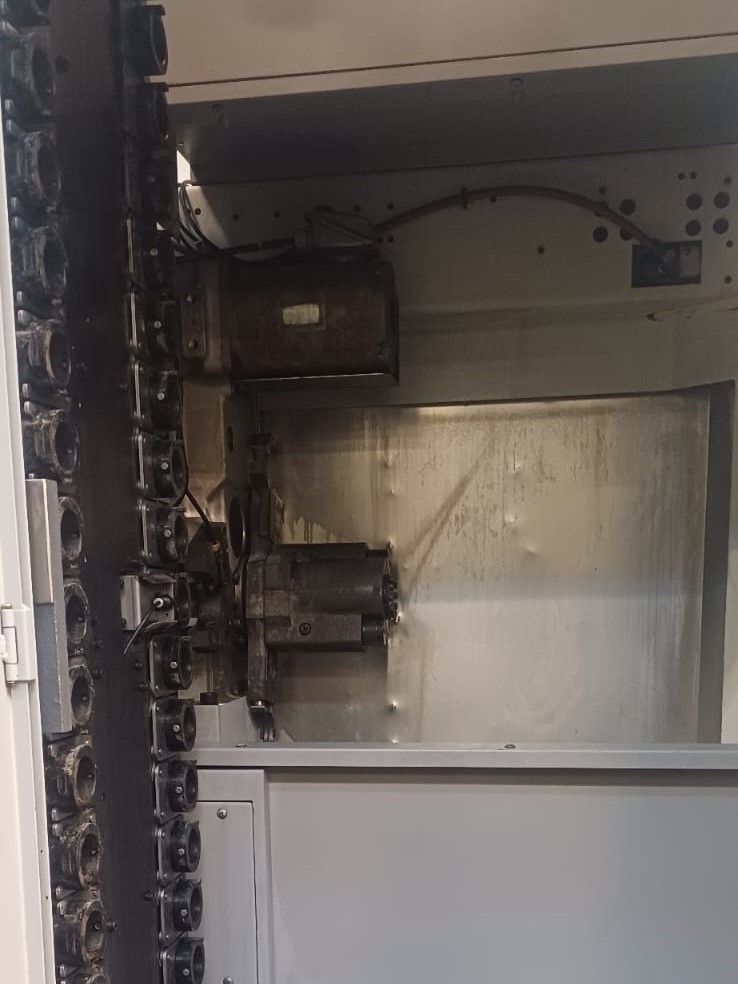

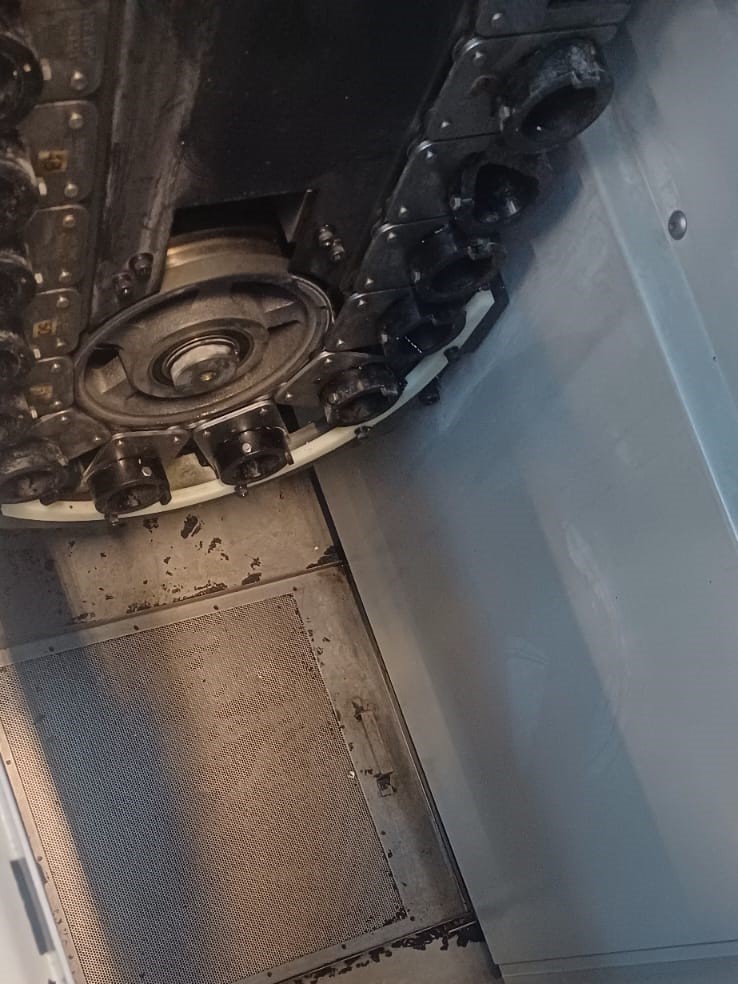

| Tool storage capacity | 60 stations |
| Max tool diameter (with full adjacent stations) (mm) | Ø 140 / Ø70 |
| Max tool lenght (mm) | 500 |
| Max tool weight (kg) | 12 |
| ACCESSORIES | |

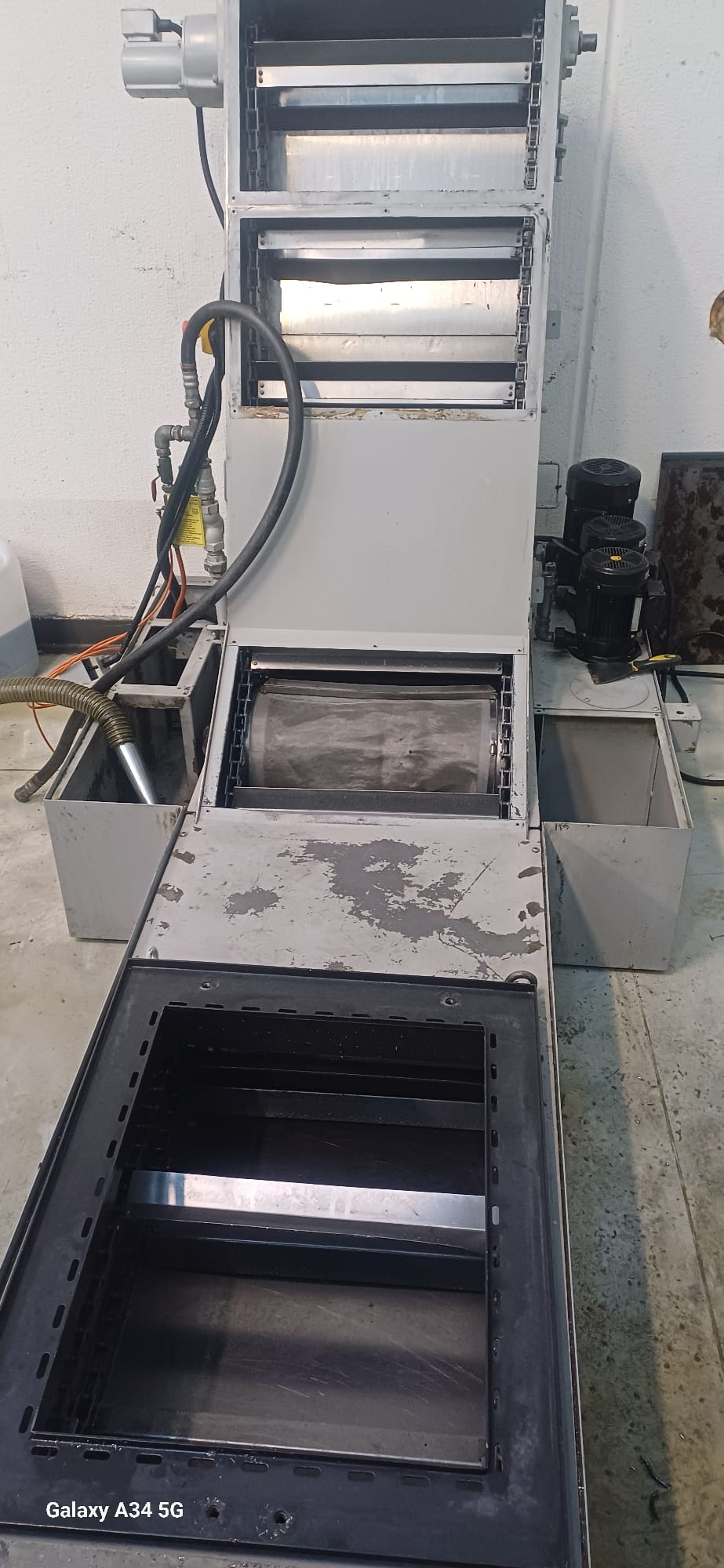

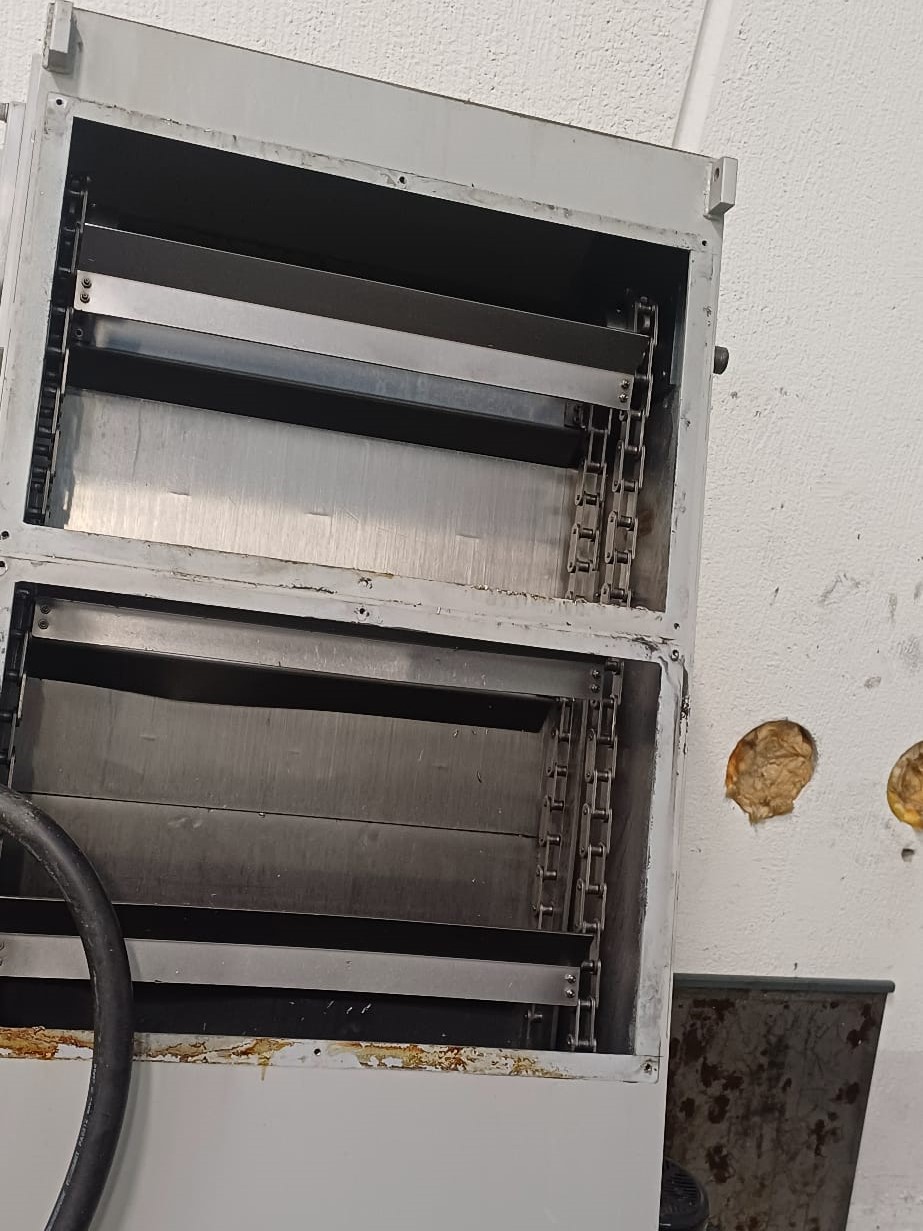

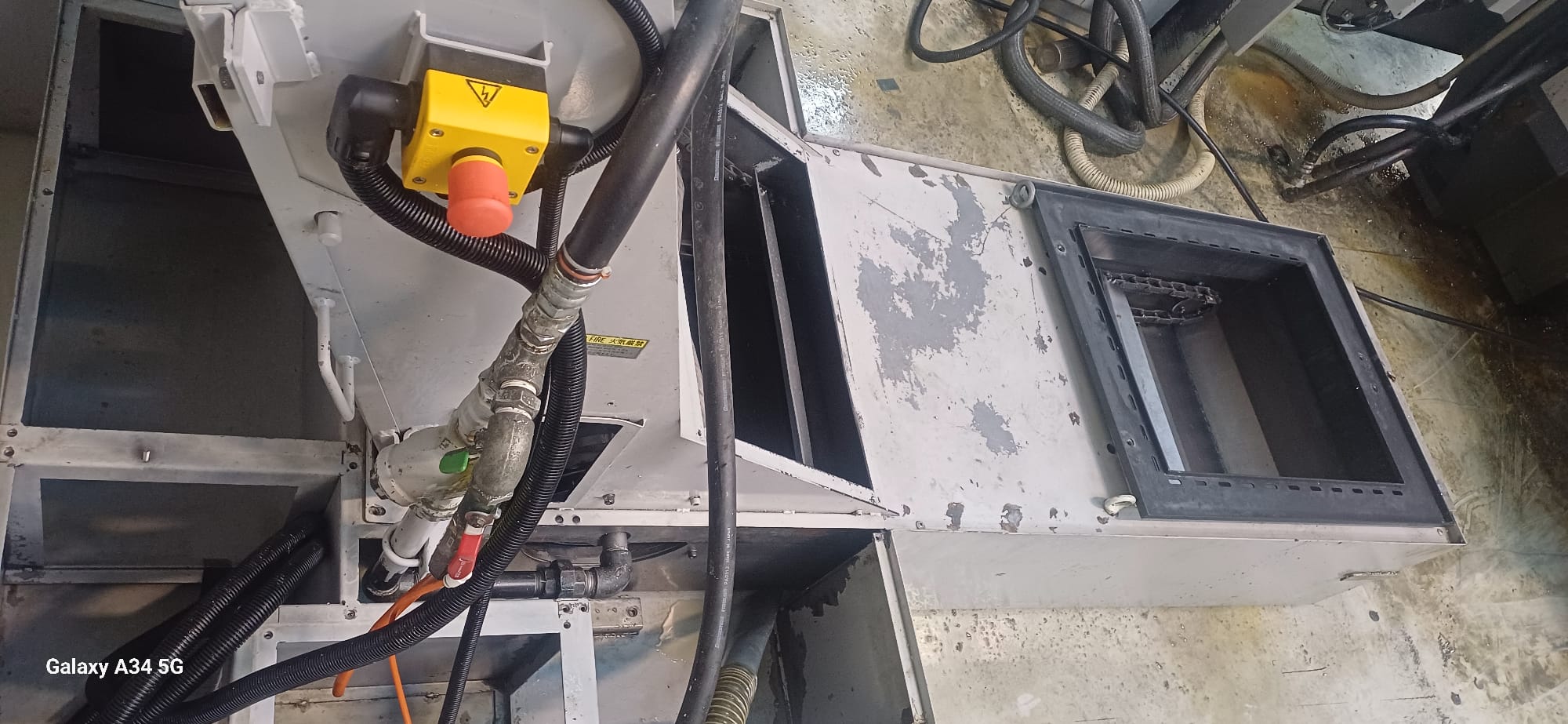

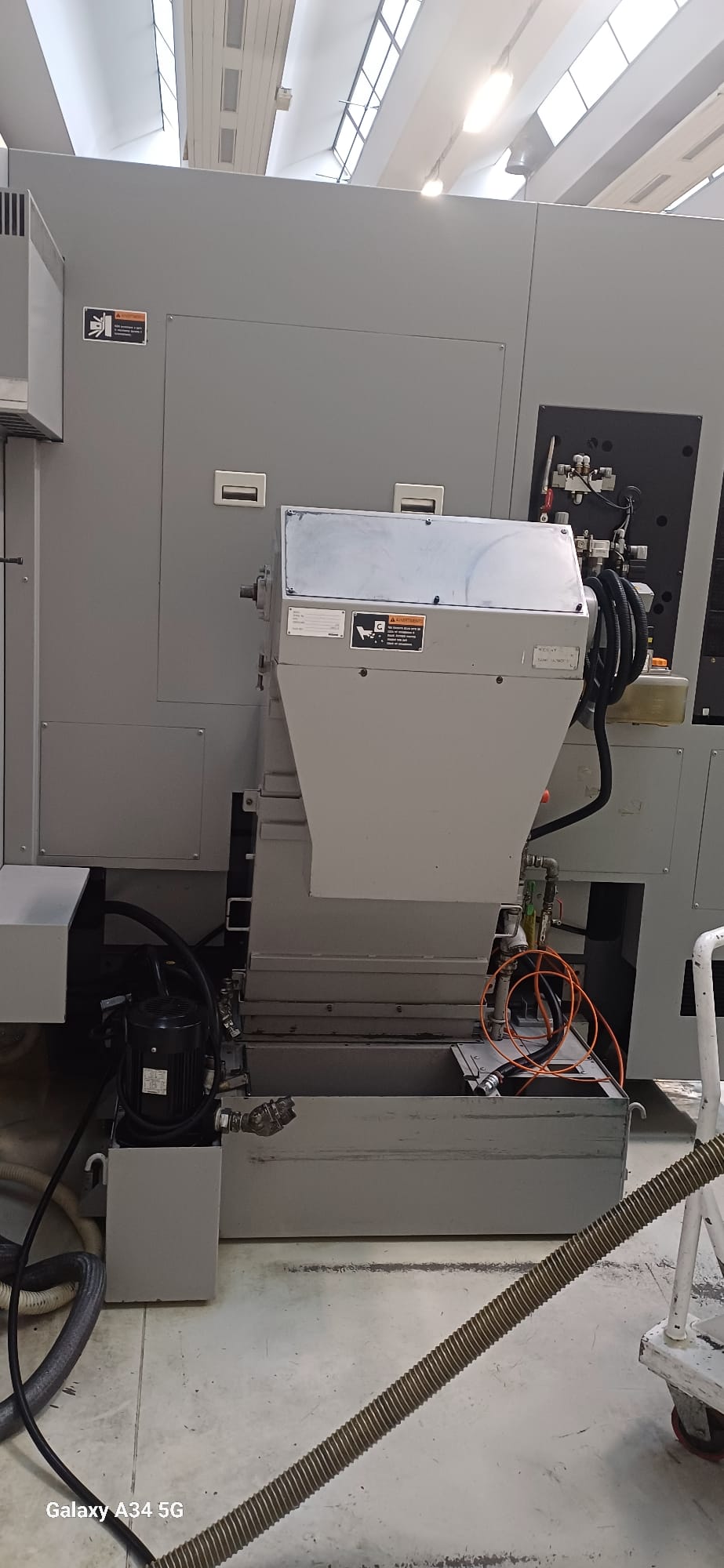

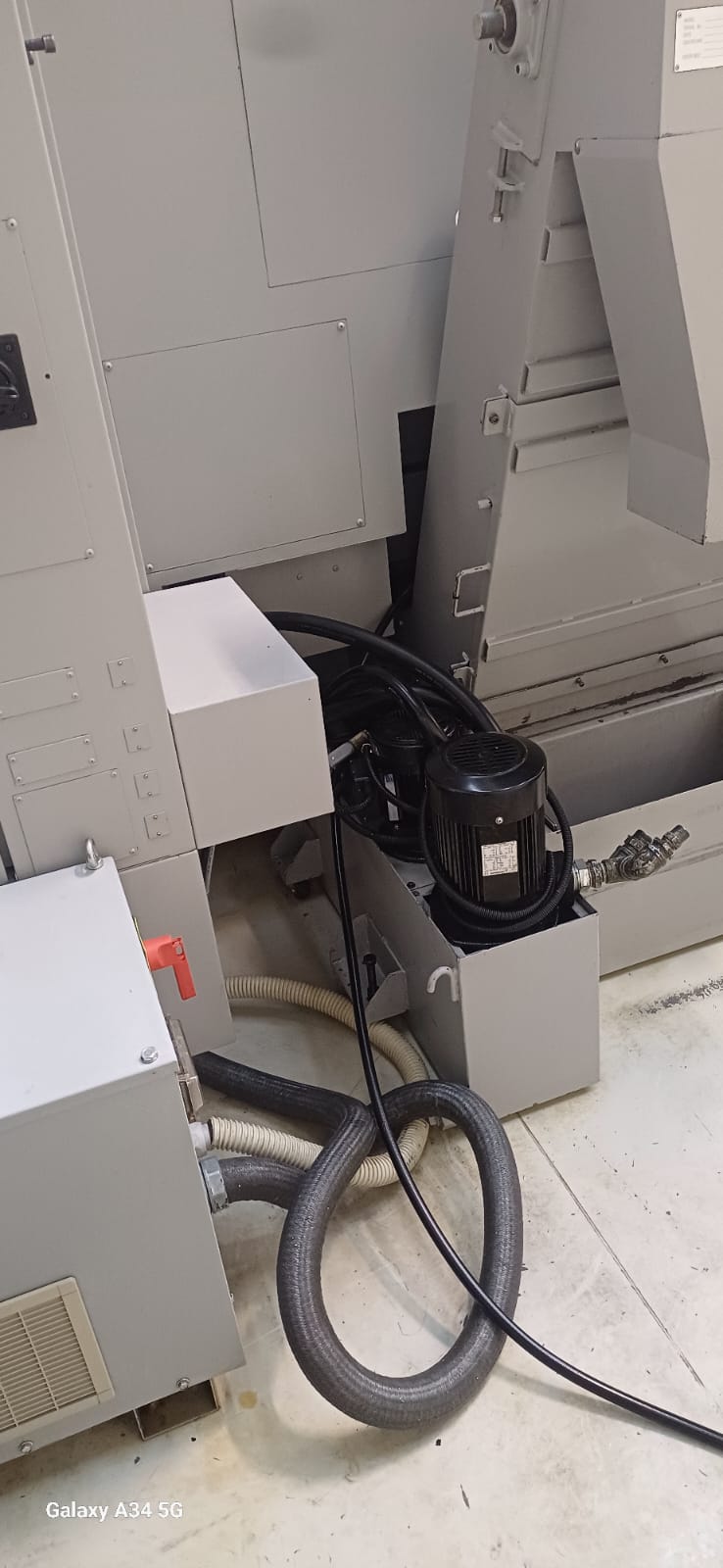

| Tank and chip conveyor | |

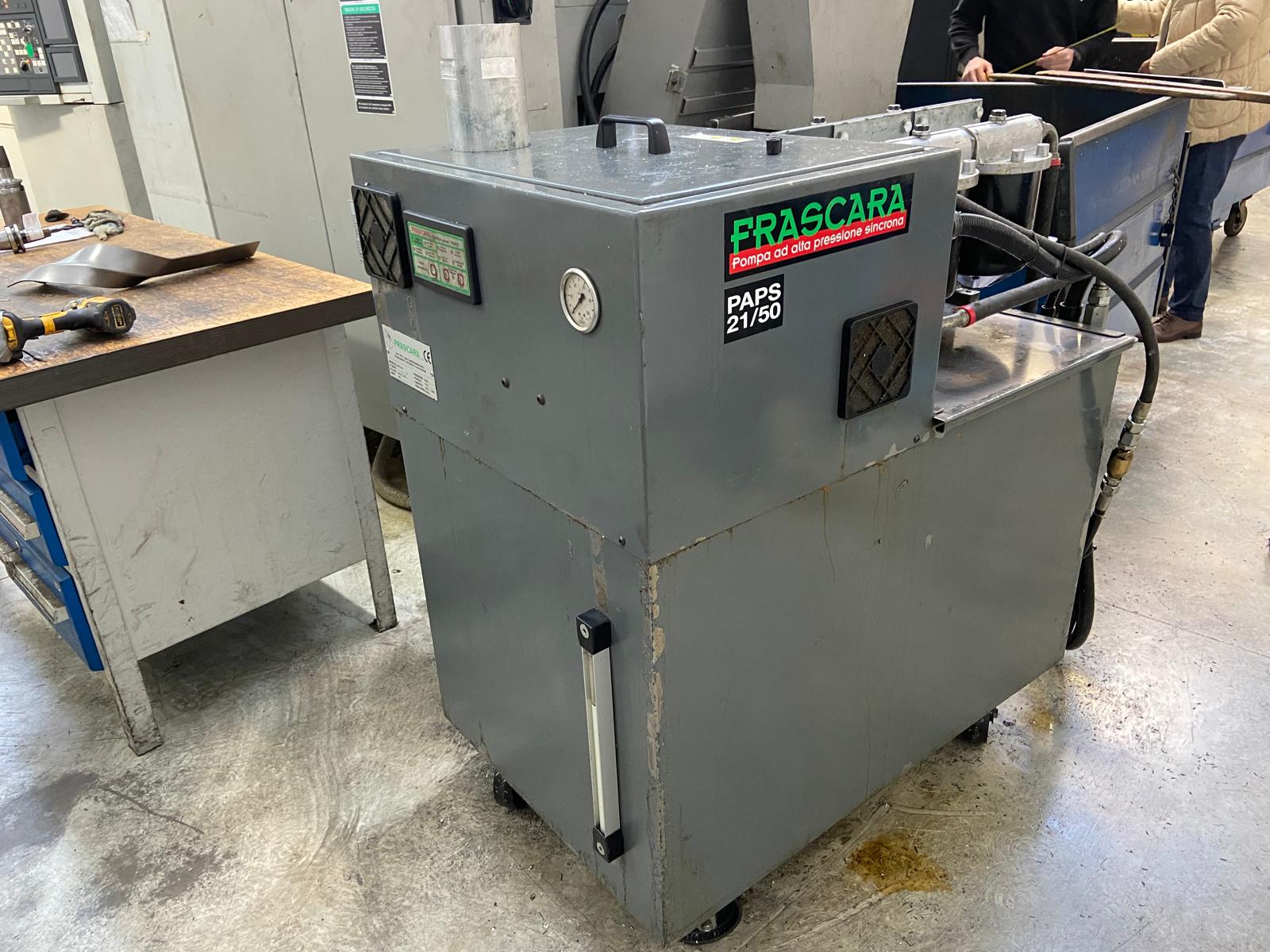

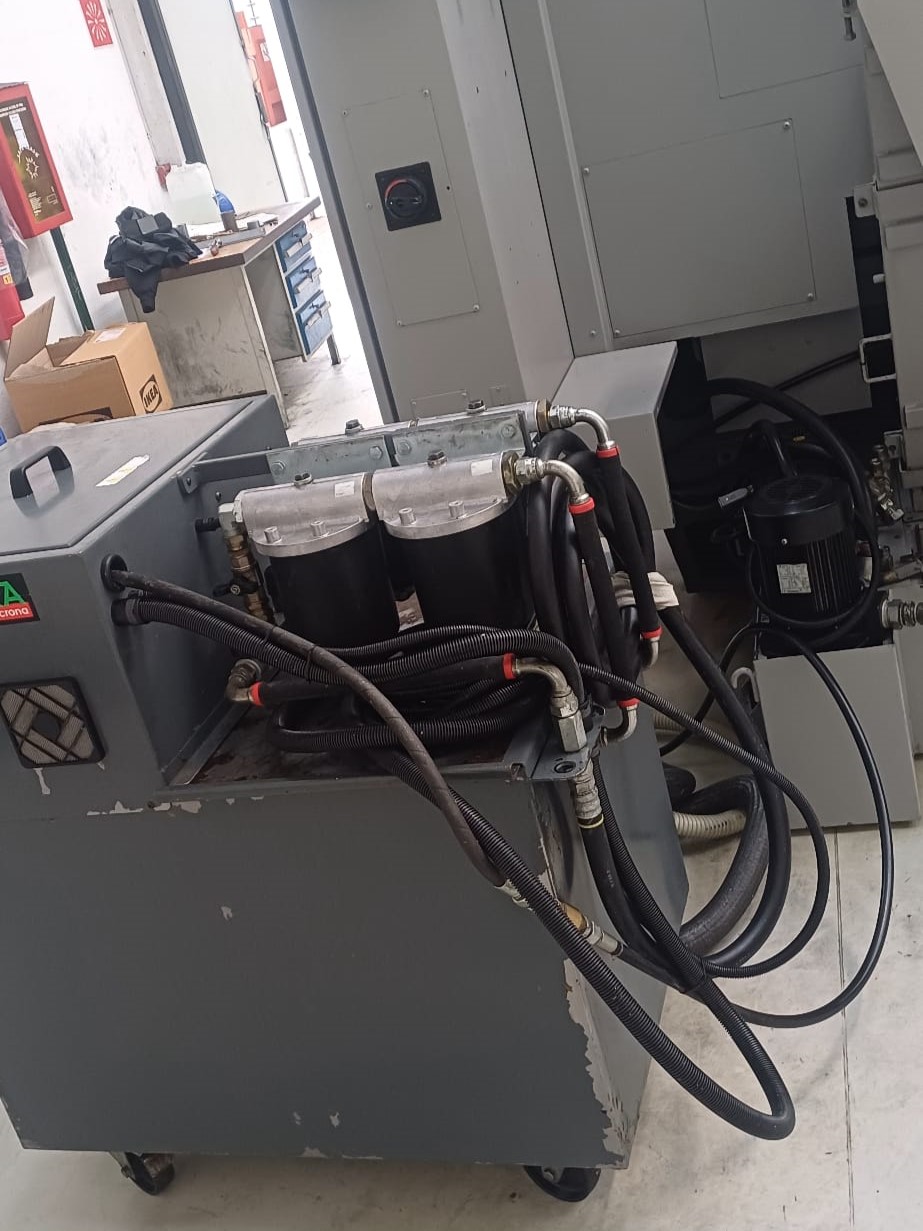

| High pressure pump for lubricant throughout the spindle line (FRASCARA PAPS 21/50) 50 bar | |
| Presetting | |
| Coolant system for spindle head, hydraulic unit and electrical trasformer | |
| Manuals, electric schematic | |
