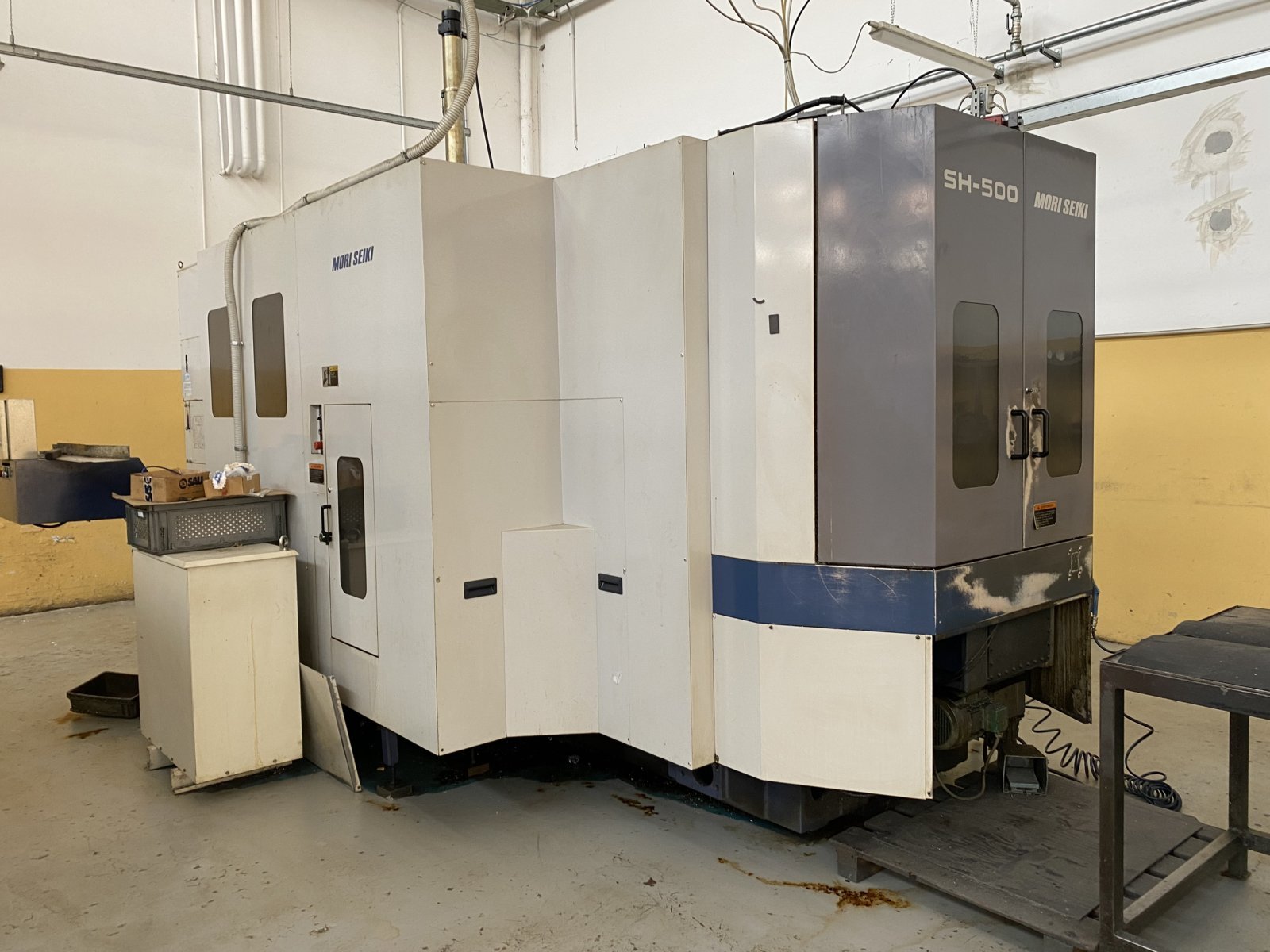

| MANUFACTURER | MORI SEIKI |
| MODEL | SH-500/40 |
| CATEGORY | Horizontal machining center |
| YEAR | 06-1998 |
| CNC CONTROL | MORI SEIKI MSG-501 |
| MACHINE WEIGHT (kg) | 14.000 |
| DIMENSIONS (width. x lenght. x height.) (mm) | 2.900 x 4.900 x 3.428 |
| NUMBER OF AXIS | 3 |

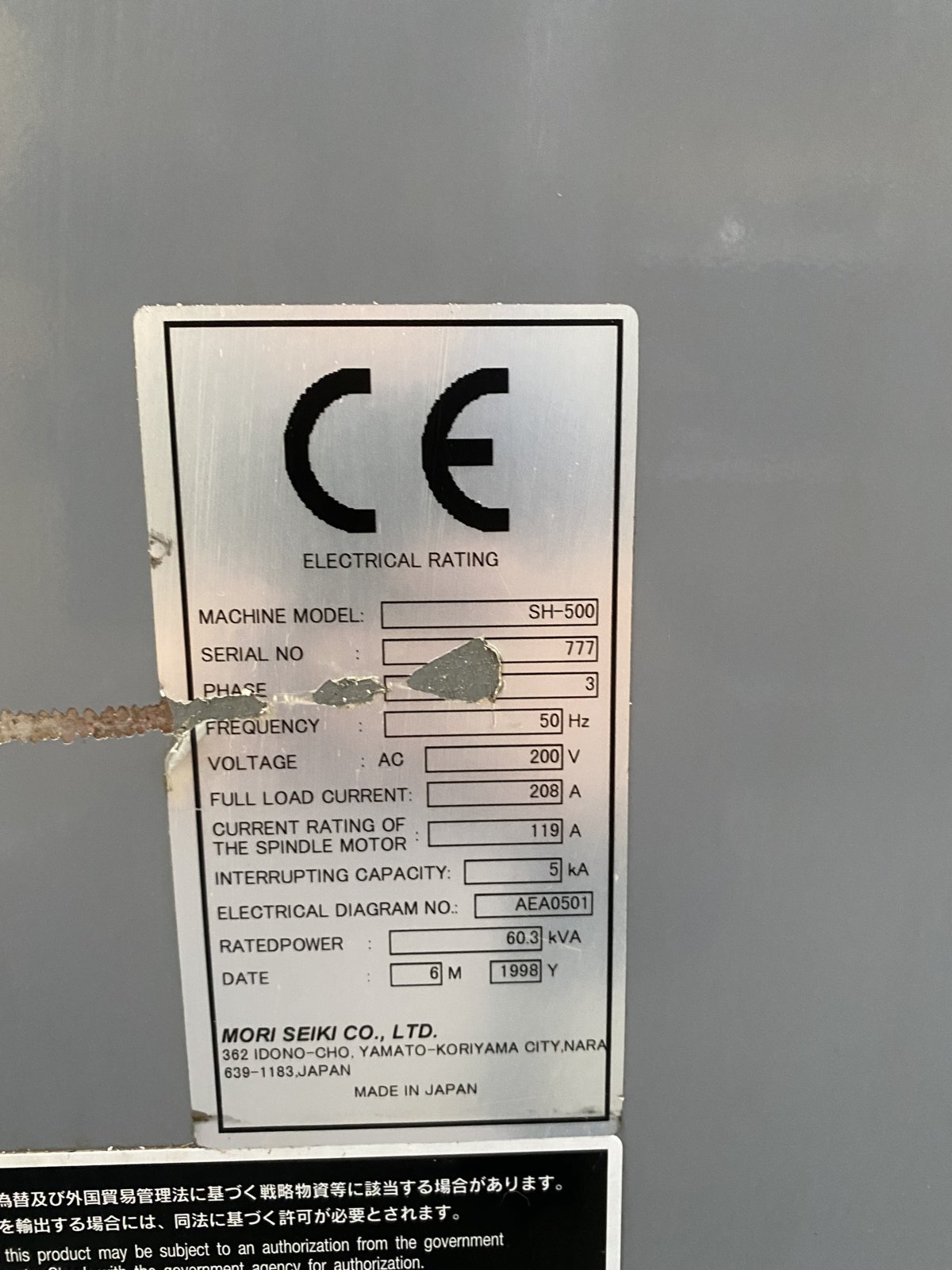

| CE DECLARATION | YES |
| SPINDLE | |
| Cone dimension | BT-40 |
| Max spindle speed (rpm) | 12.000 |
| Max spindle motor power (cont./30 minuti) (kW) | 11/15 |
| CAPACITIES | |
| X axis (mm) | 630 |
| Y axis (mm) | 600 |
| Z axis (mm) | 650 |
| Distance spindle center – pallet surface (mm) | 50 – 650 |
| Distance spindle nose – pallet center (mm) | 150 – 800 |
| Max piece size (diam. x height) (mm) | Ø 730 x 700 |
| TABLE | |
| Dimension (mm) | 500 x 500 |
| Number of station | 2 stations with 1 pallet each. |
| Load capacity (kg) | 500 |
| Rotation | indexed 360 position |
| FEEDRATES | |
| Rapids X/Y/Z axis (mm/min) | 32.000 |
| Working feeds X/Y/Z axis (mm/min) | 1 – 16.000 |
| Motors power (kW) | X,Y,Z: 3,8 | B: 1,0 |
| TOOL CHANGER | |
| Tool cone | BT-40 |
| Pull stud | Type Mori Seiki 90° |
| Tool storage capacity | 60 stations |
| Max tool diameter (without/with full adjacent stations) (mm) | Ø 150 / Ø100 |
| Max tool lenght (mm) | 360 |
| Max tool weight (kg) | 12 |
| ACCESSORIES | |
| Tank and chip conveyor | |
| High pressure pump for lubricant throughout the spindle line | |
| Coolant system for spindle line | |
| Tool holders kit | |
| Manuals, electric schematic | |
