| MANUFACTURER | HARDINGE |
| MODEL | VMC-1000 II |
| CATEGORY | Vertical machining center |
| YEAR | Nov-2002 |

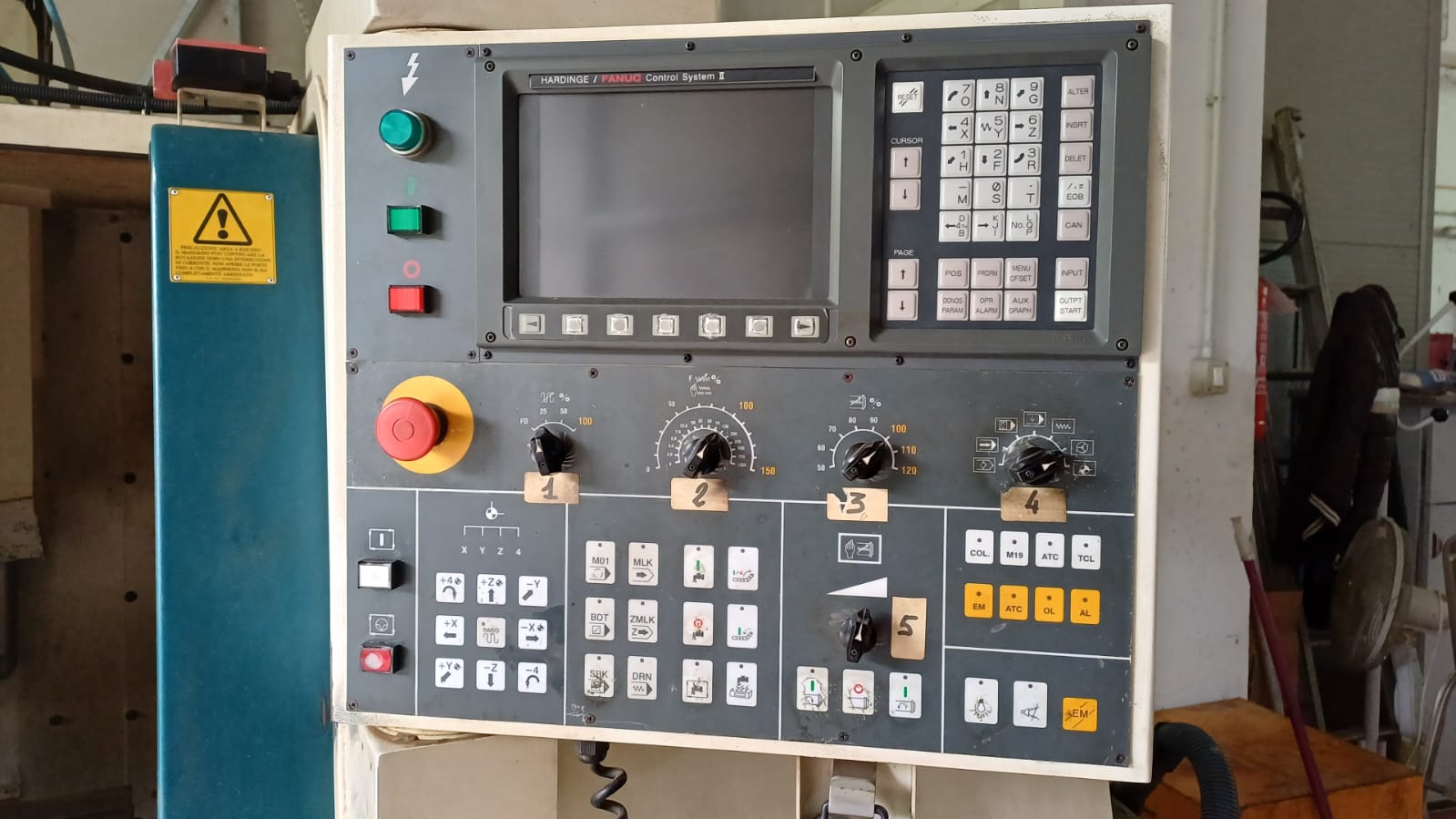

| CNC CONTROL | Fanuc |
| MACHINE WEIGHT (kg) | |
| DIMENSIONS (larg. x profondità. x alt.) (mm) | |
| NUMBER OF AXIS | 3 |
| CE DECLARATION | YES |
| SPINDLE | |
| Cone dimension | ISO 40 |
| Max spindle speed (rpm) | 8.000 |
| Max power (kW) | 13 |
| CAPACITIES | |
| X axis (mm) | 1020 |
| Y axis (mm) | 510 |
| Z axis (mm) | 510 |
| TABLE | |
| Dimension (mm) | 1200 x 510 |
| Load capacity (kg) | 700 |
| TOOL CHANGER | |
| Tool cone | BT-40 |
| Tool storage capacity | 20 |
| ACCESSORIES | |
| Manual, Electrical schemes, CE Declaration | |
| Chip conveyor | |

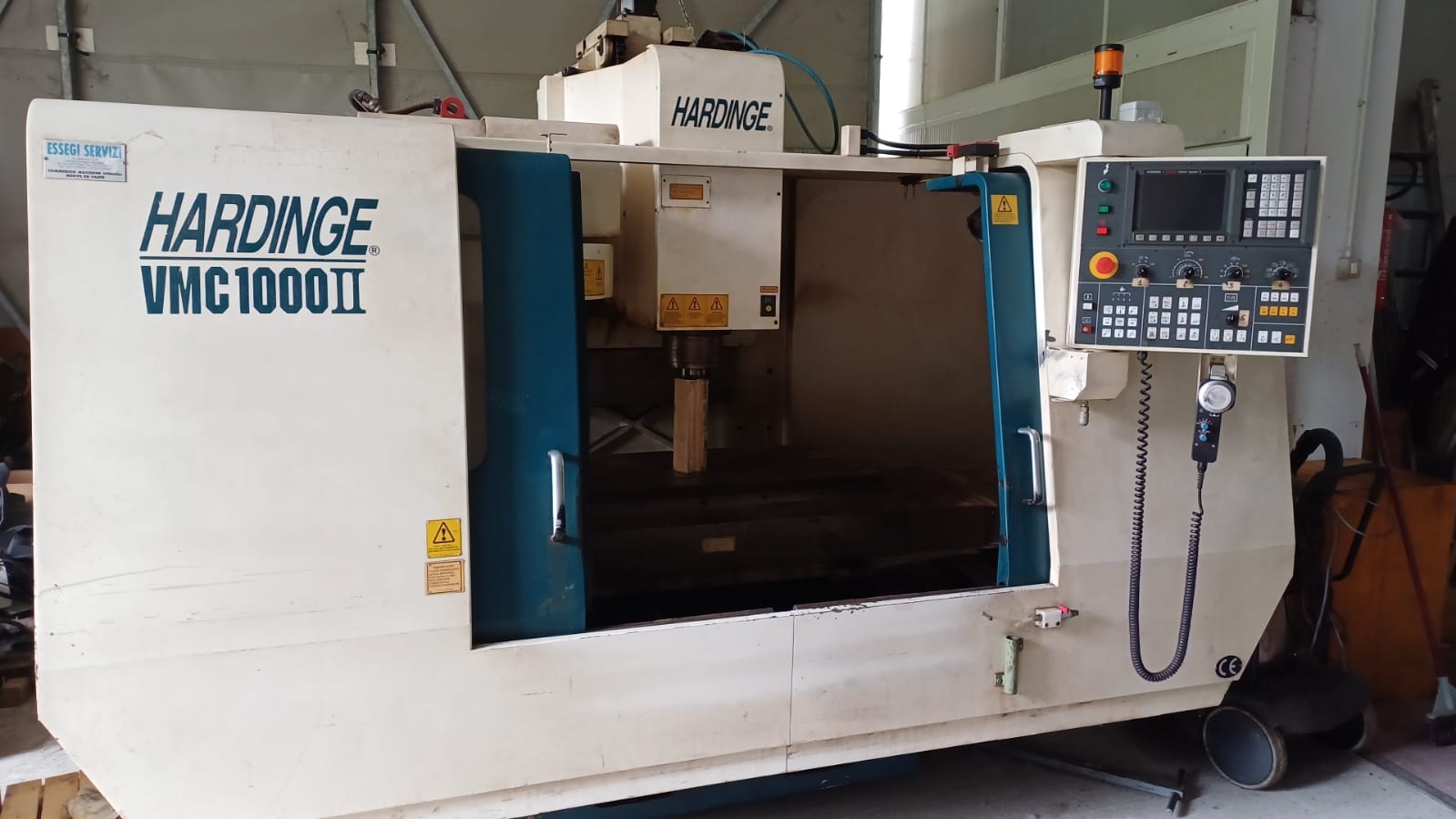

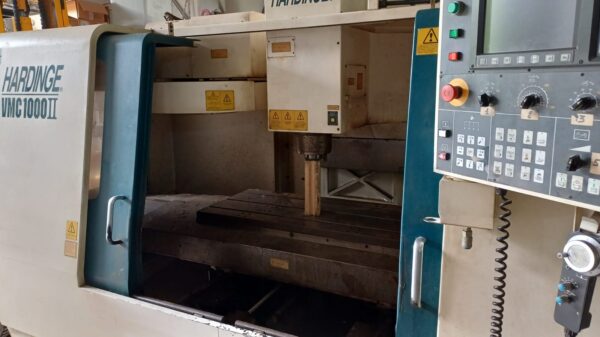

HARDINGE VMC 1000 II – anno 2002
Download scheda tecnica completa: HARDINGE VMC 1000 II
