| MANUFACTURER | PFG |
| MODEL | CLV 1000-2B |
| CATEGORY | Vertical machining center |
| YEAR | 1998 |

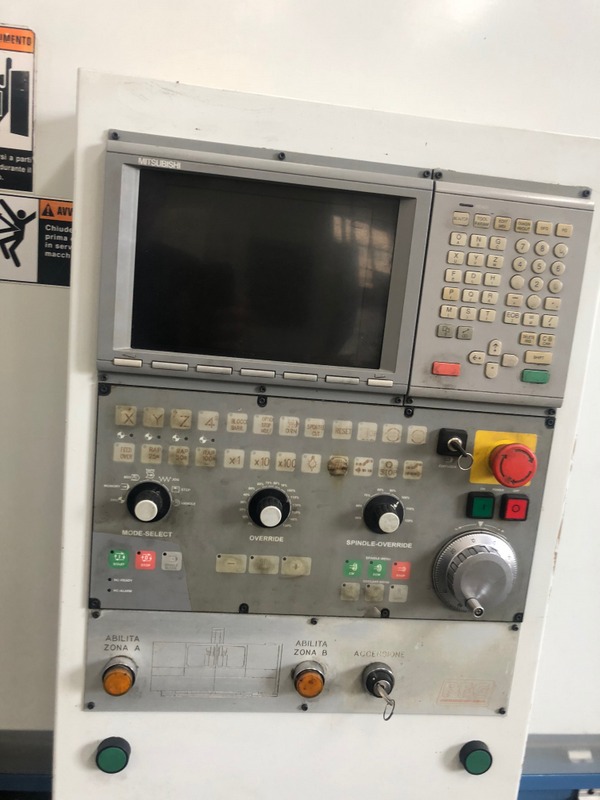

| CNC CONTROL | Mitsubishi Meldas 520 |
| MACHINE WEIGHT (kg) | 10.000 |
| DIMENSIONS (larg. x profondità . x alt.) (mm) | |
| NUMBER OF AXIS | 3 |
| CE DECLARATION | YES |
| SPINDLE | |
| Cone dimension | ISO 40 |
| Max spindle speed (rpm) | 8.000 |
| Max power (kW) | 11 |
| CAPACITIES | |
| X axis (mm) | 2000 |
| Y axis (mm) | 550 |
| Z axis (mm) | 550 |
| TABLE | |
| Dimension (mm) | (1.065 x 590) x 2 (2.380 x 590) x 1 |
| Load capacity (kg) | (1.000) x 2 |
| FEEDRATES | |
| Rapids X/Z axis (mm/min) | 24.000 |
| Rapids Y axis (mm/min) | 24.000 |
| TOOL CHANGER | |
| Tool cone | BT-40 |
| Tool storage capacity | 30 |
| ACCESSORIES | |
| Manual, Electrical schemes, CE Declaration | |

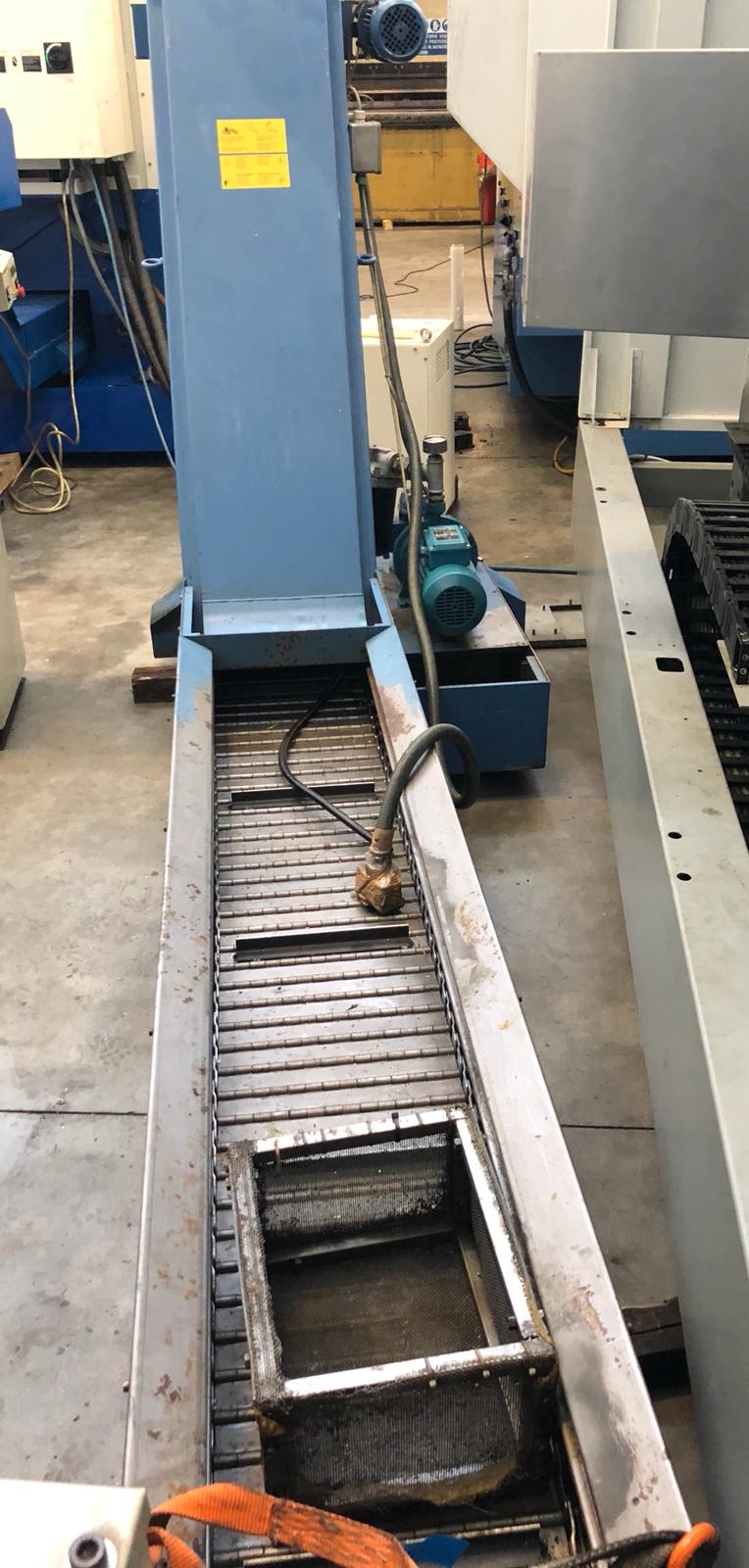

| Chip conveyor | |

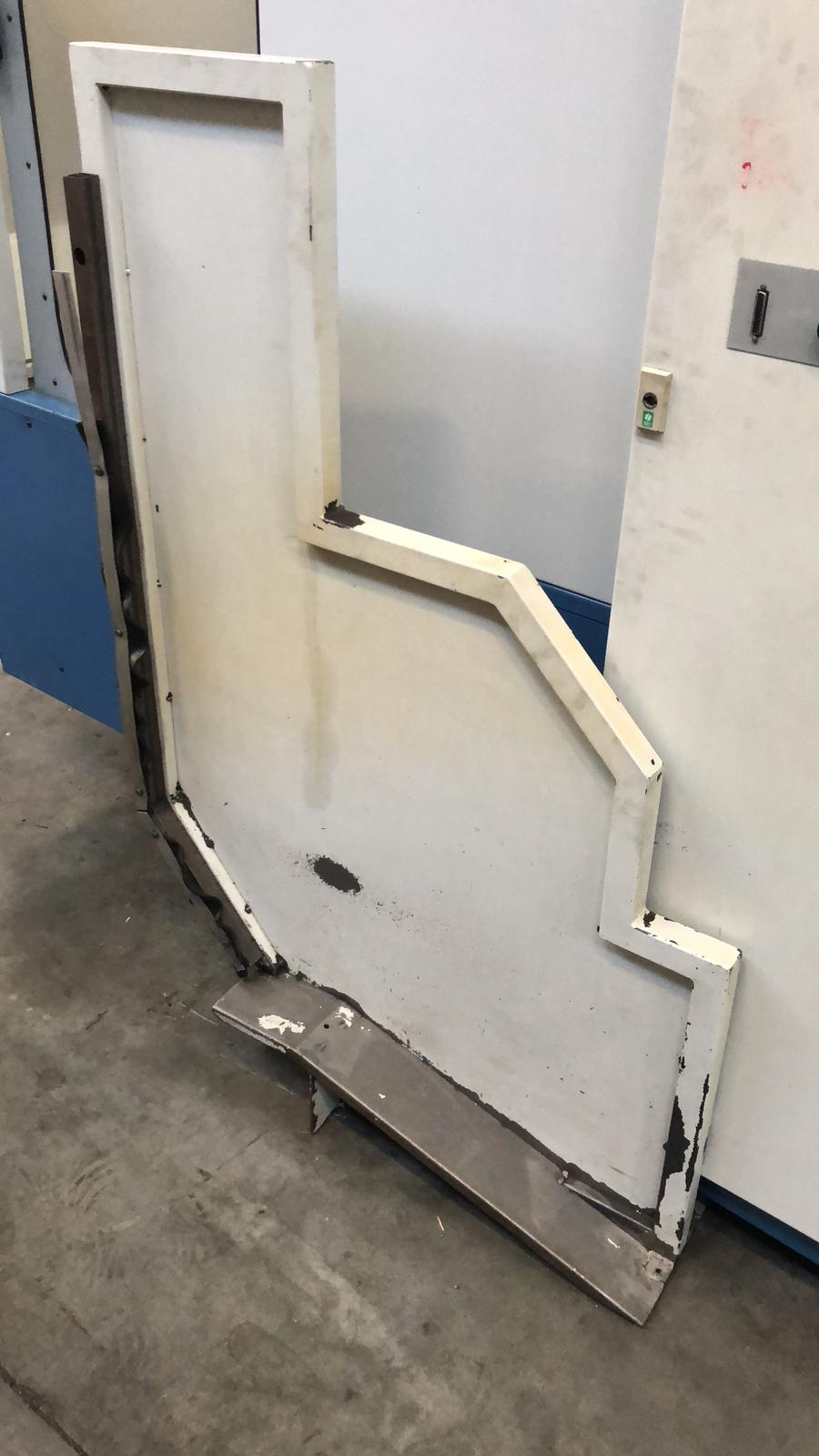

| Intermediate wall | |
