| MANUFACTURER | MORI SEIKI |
| MODEL | NV-5000 A/40 |
| CATEGORY | Vertical Machining Center |
| YEAR | 12/2002 |

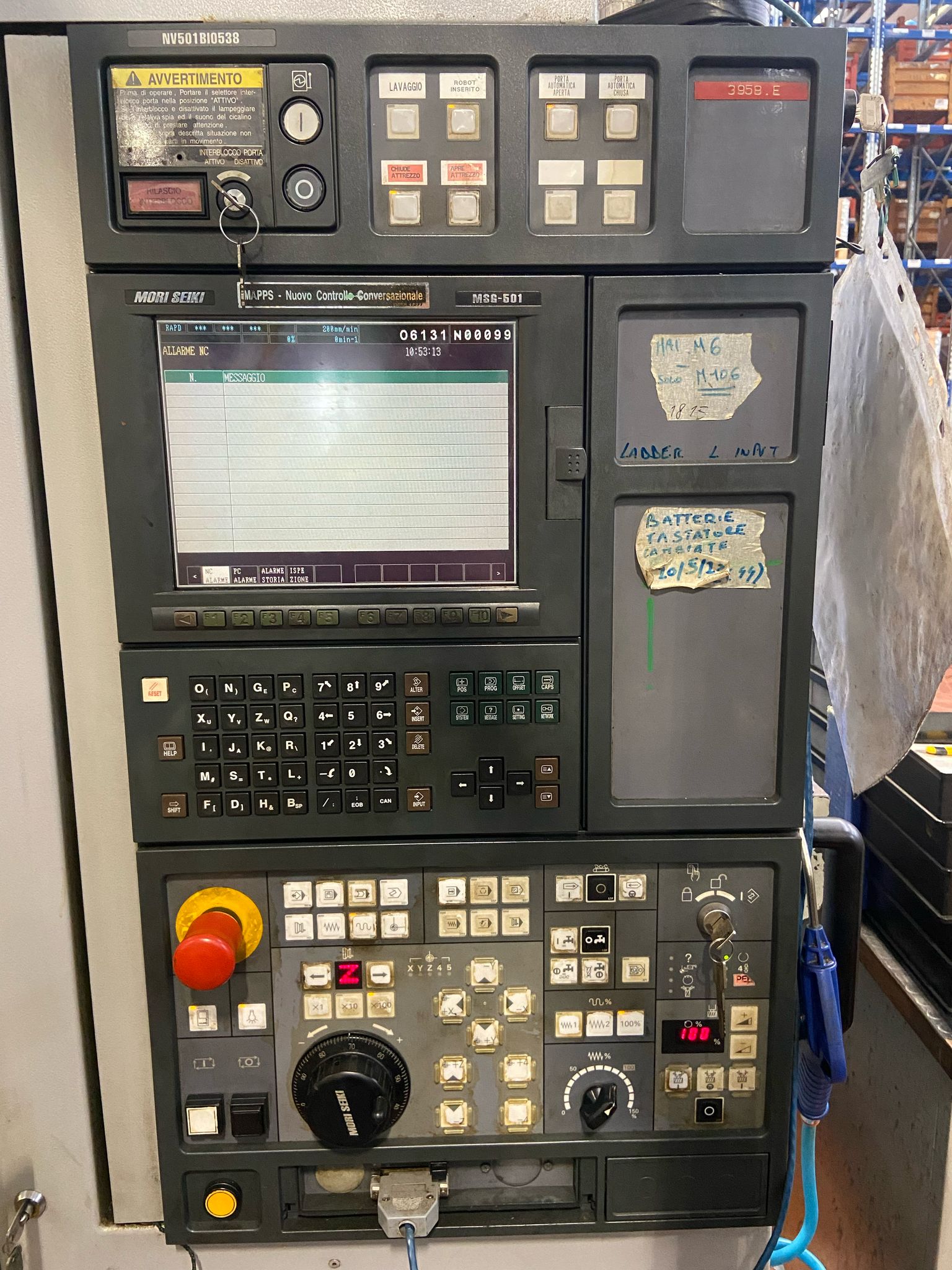

| CNC CONTROL | MORI SEIKI MSG-501 (Fanuc) |
| MACHINE WEIGHT (kg) | 6.350 |
| DIMENSIONS (larg. x profondità . x alt.) (mm) | 2.465 x 2.788 x 2.603 |
| NUMBER OF AXIS | 3 |
| CE DECLARATION | YES |
| SERIAL NUMBER | NV501BI0538 |
| SPINDLE | |
| Cone dimension | BT-40 |
| Max spindle speed (rpm) | 14.000 |
| Max spindle motor power (cont./30 minuti) (kW) | 18,5 / 22 |
| CAPACITIES | |
| X axis (mm) | 800 |
| Y axis (mm) | 510 |
| Z axis (mm) | 510 |
| Distance pallet surface – spindle center (mm) | 150-660 |
| Max piece size (diam. x height) (mm) | |
| TABLE | |
| Dimension (mm) | 1100 x 600 |
| Load capacity (kg) | 1200 |
| FEEDRATES | |
| Rapids X/Y/Z axis (mm/min) | 42.000 |
| Working feeds X/Y/Z axis (mm/min) | 1 – 42.000 |
| Motors power (kW) | X,Y: 4,0 | z: 5,5 |
| TOOL CHANGER | |
| Tool cone | BT-40 |
| Pull stud | Type Mori Seiki 90° |
| Tool storage capacity | 30 |
| Max tool diameter (with full adjacent stations) (mm) | 80 |
| Max tool lenght (mm) | 300 |
| Max tool weight (kg) | 8 |
| ACCESSORIES | |
| Chip conveyor | |
| High pressure pump (Lubrication through spindle) (25 bar) | |

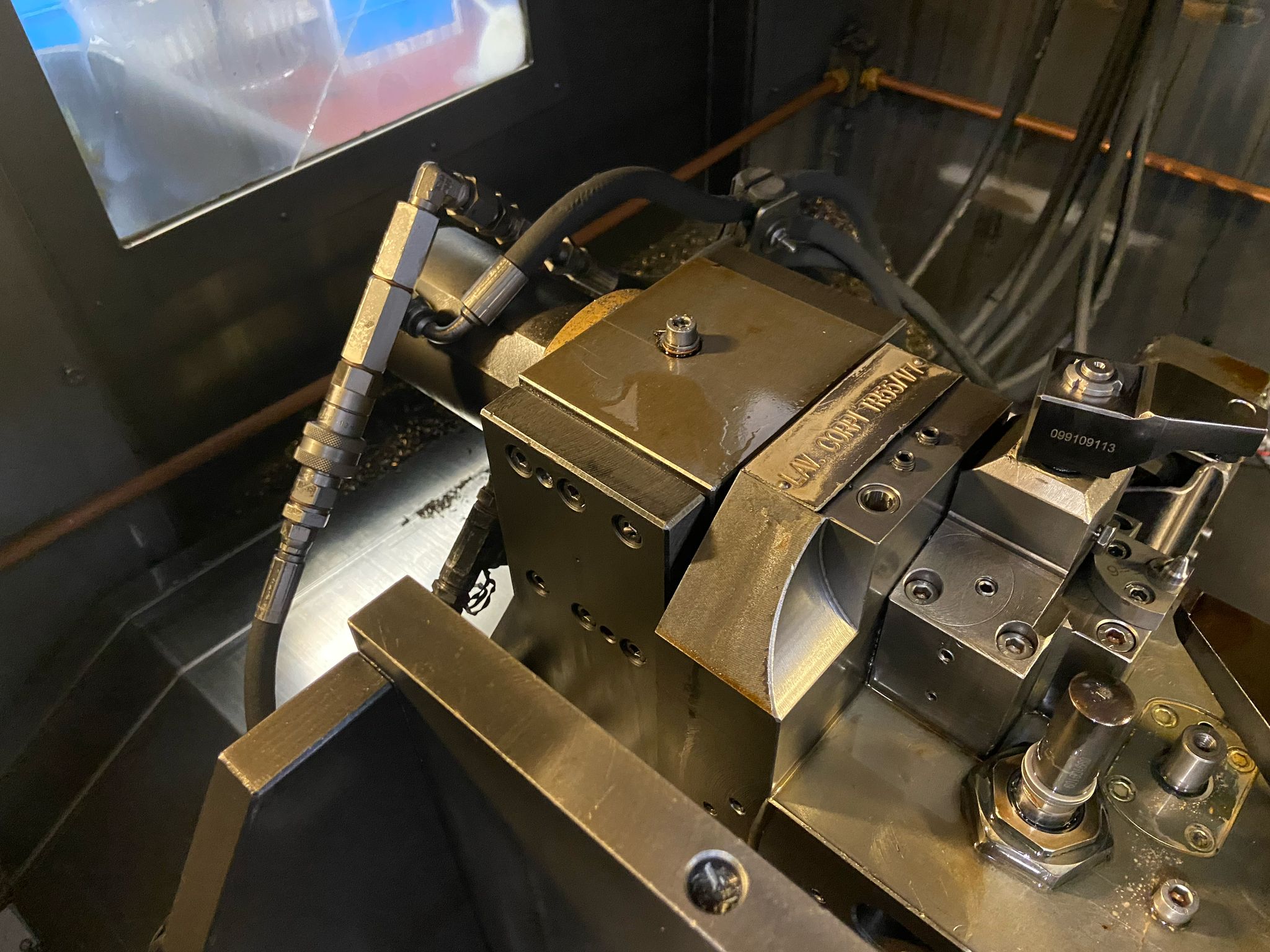

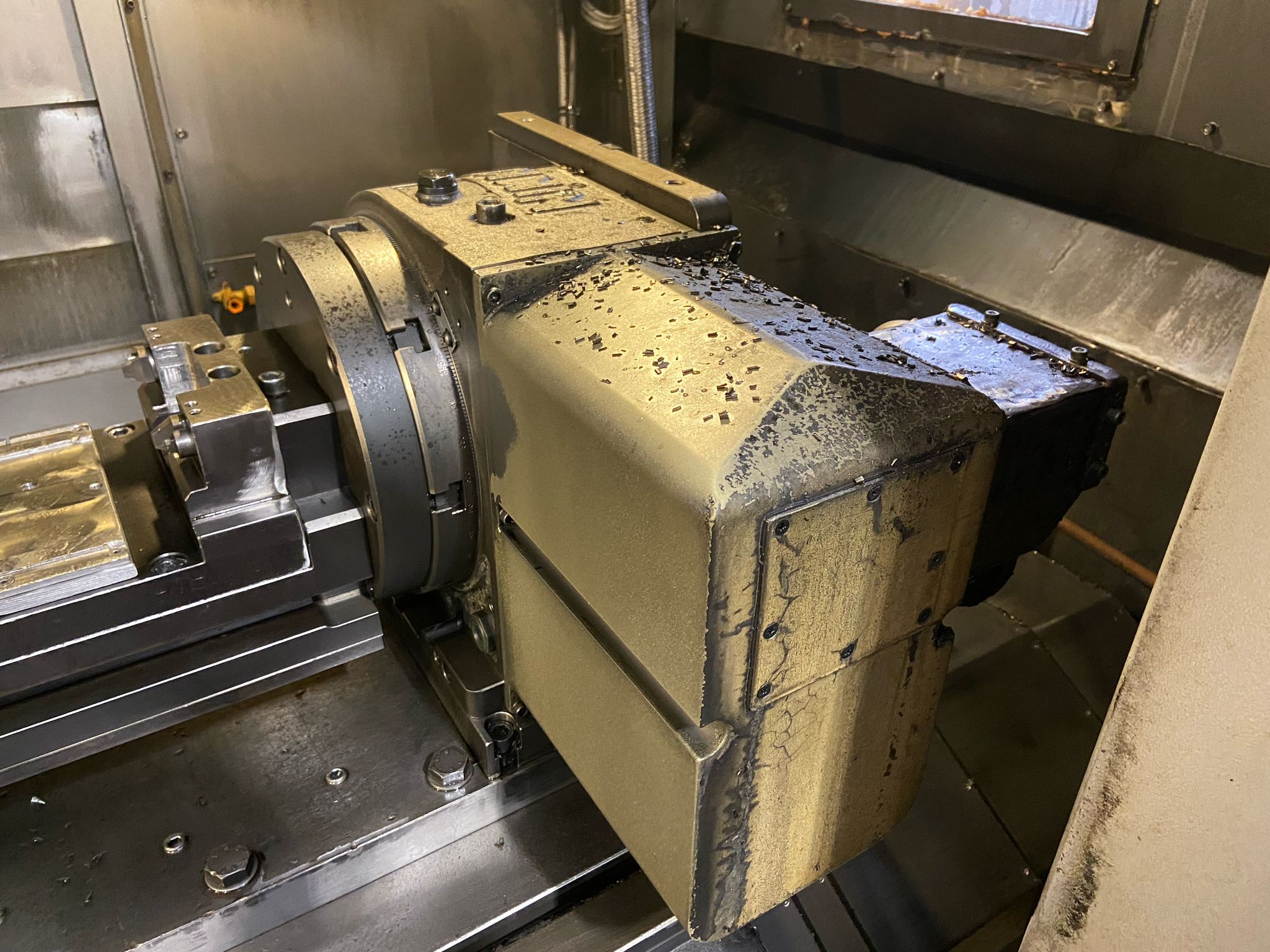

| Rotary table 4th axis: NIKKEN mod. CNC 200 | |
| MARPOSS touch probe system | |
| Automatic door | |

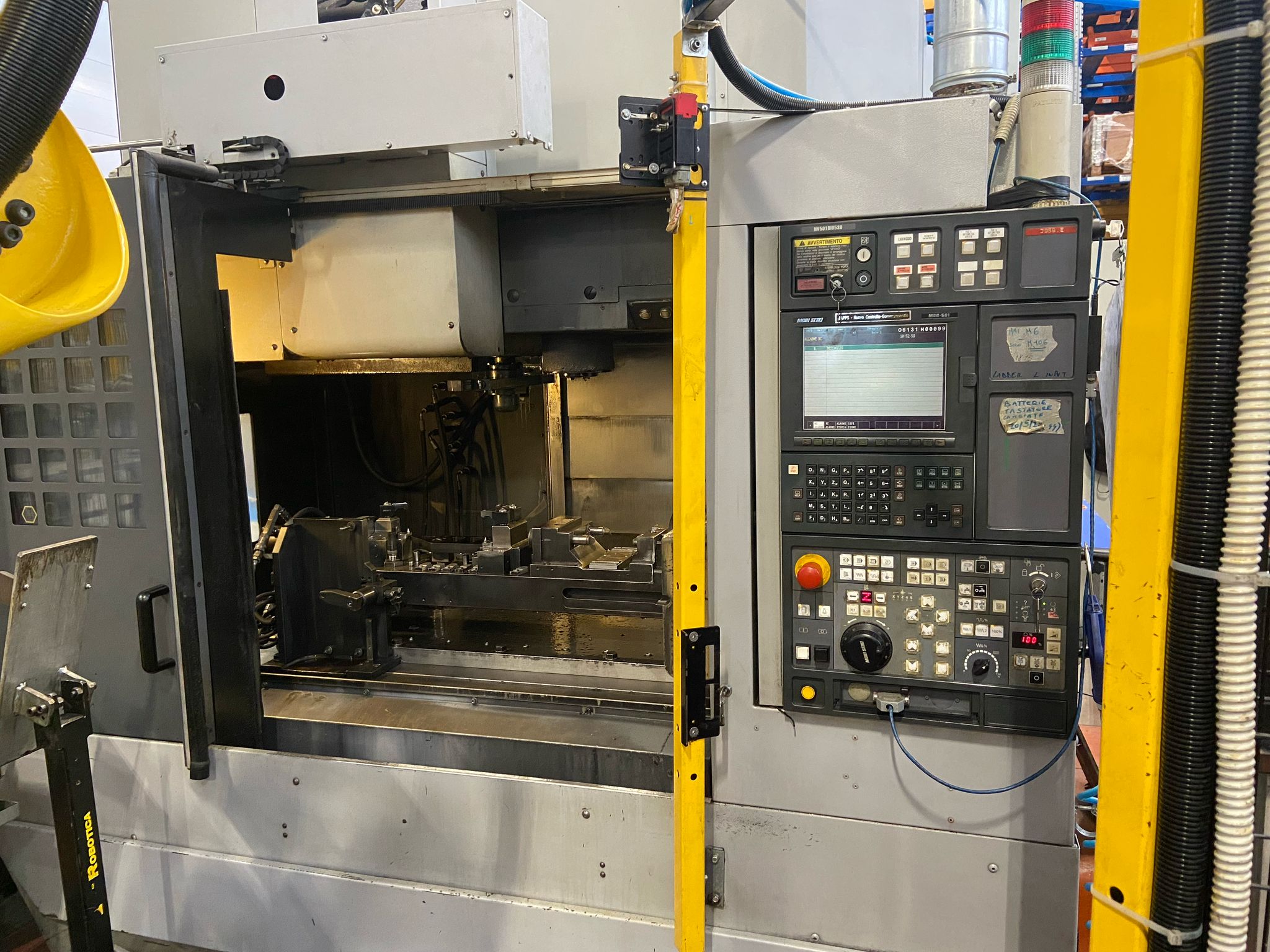

MORI SEIKI NV 5000 A/40 – anno 2002
