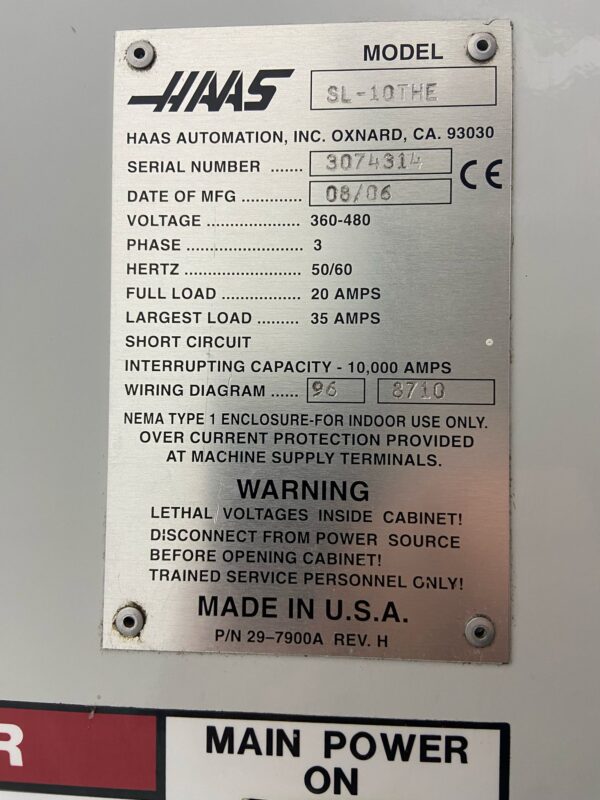

| MANUFACTURER | HAAS |
| MODEL | SL 10 THE |
| CATEGORY | CNC Lathe |
| YEAR | 2006 |
| CNC CONTROL | HAAS |
| MACHINE WEIGHT (kg) | 3.580 |
| DIMENSIONS (width. x lenght. x height.) (mm) | 3.100 x 1.600 x 1.850 |
| NUMBER OF AXIS | 2 axis (X, Z) |
| CE DECLARATION | YES |
| CAPACITIES | |
| Max part swing (mm) | 419 |
| Max cutting diameter (mm) | 173 |
| Max cutting lenght (mm) | 406 |
| Bar capacity (mm) | 44 |
| TRAVELS | |
| X axis (mm) | 200 |
| Z axis (mm) | 406 |
| SPINDLE | |
| Max speed (giri/min) | 6.000 |
| Nose dimension | A2-5 |
| Dimension – Collet chuck | MSCTN 42 |
| Spindle bore dimension (mm) | 58,7 |
| Max motor power (cont.) (kW) | 11,2 |
| Max torque (Nm) | 102 Nm @ 1300 giri/min |
| Spindle bore (mm) | 58,7 |

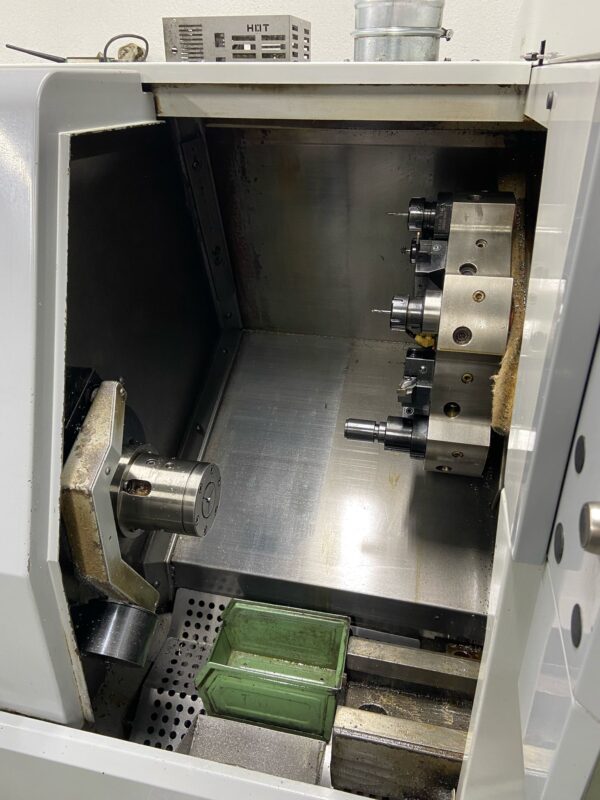

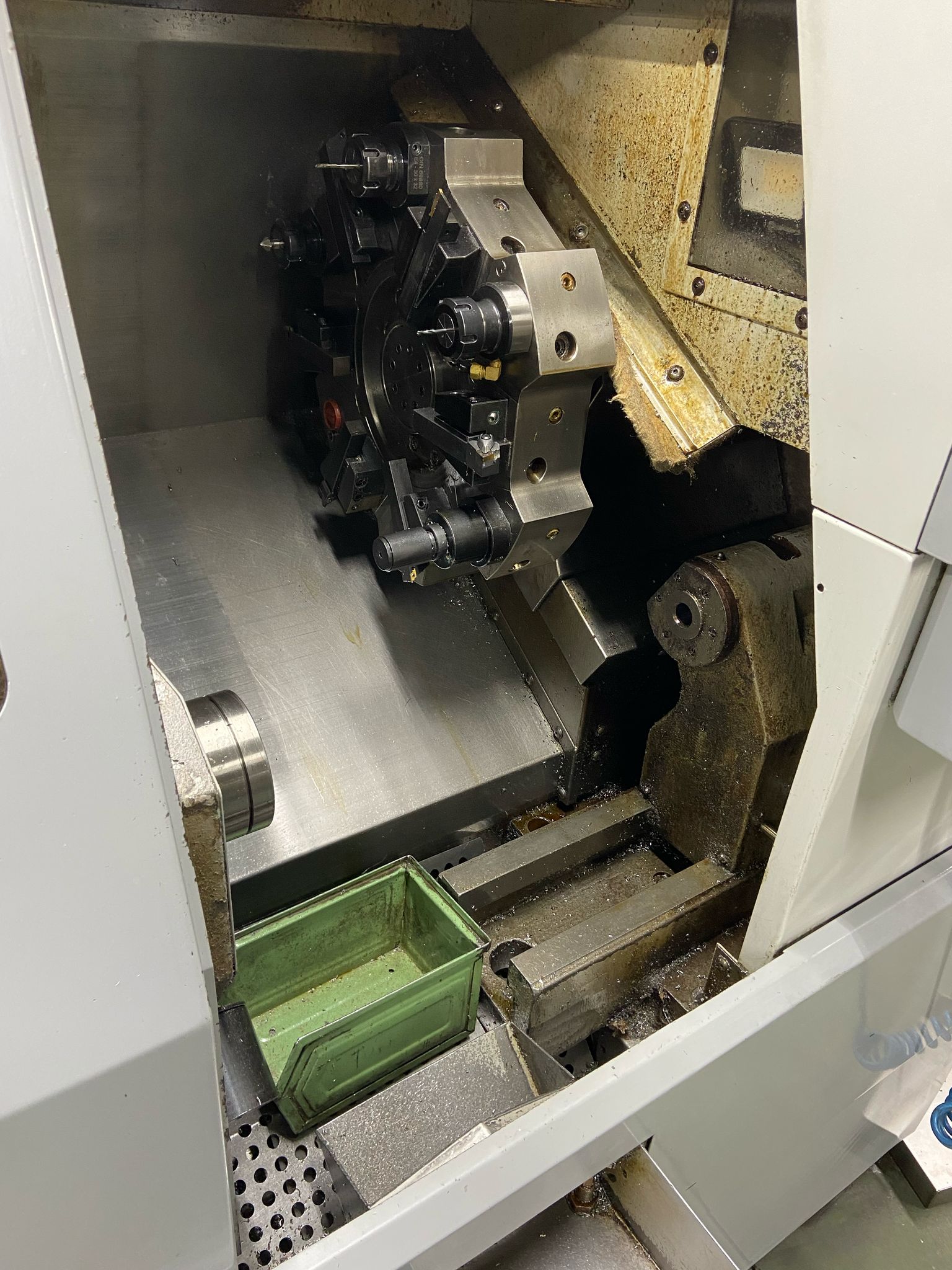

| TURRET (VDI 30) | |
| Nr. of tools | 12 |
| MANUAL TAILSTOCK | |
| Hydraulic stroke (mm) | 95 |
| FEEDRATES | |
| Rapid feedrates (mm/min) | X, Z: 30.500 |
| ACCESSORIES | |
| Tool presetter | |

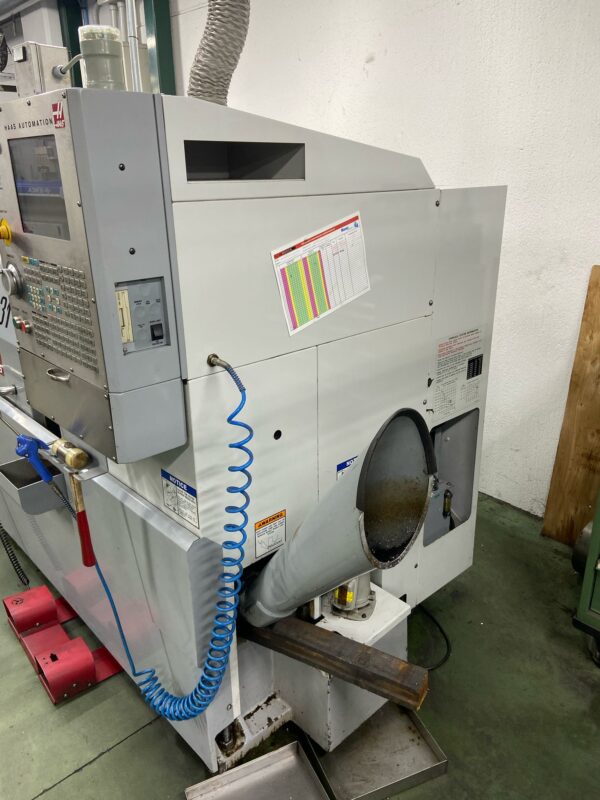

| Chip conveyor | |
| Tool holder set | |

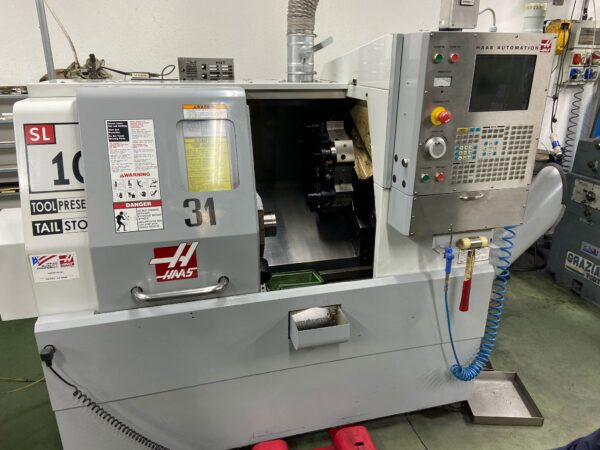

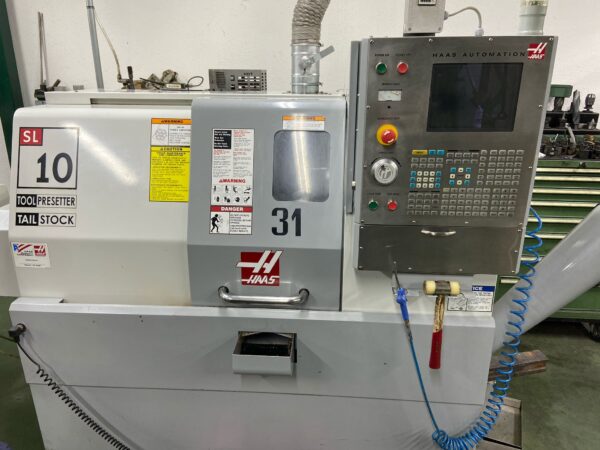

HAAS SL10 – anno 2006
Download scheda tecnica completa (English): HAASÂ SL10
